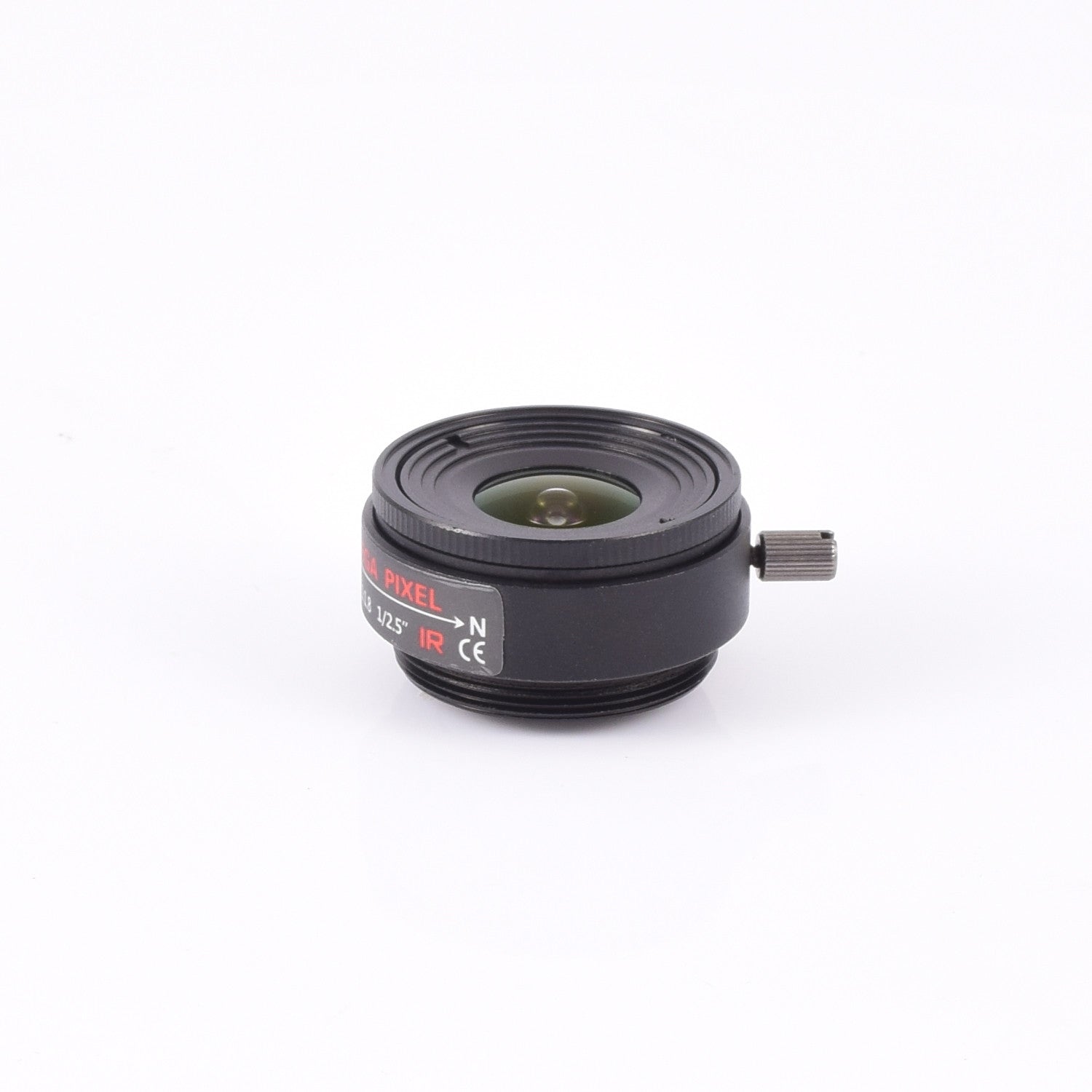

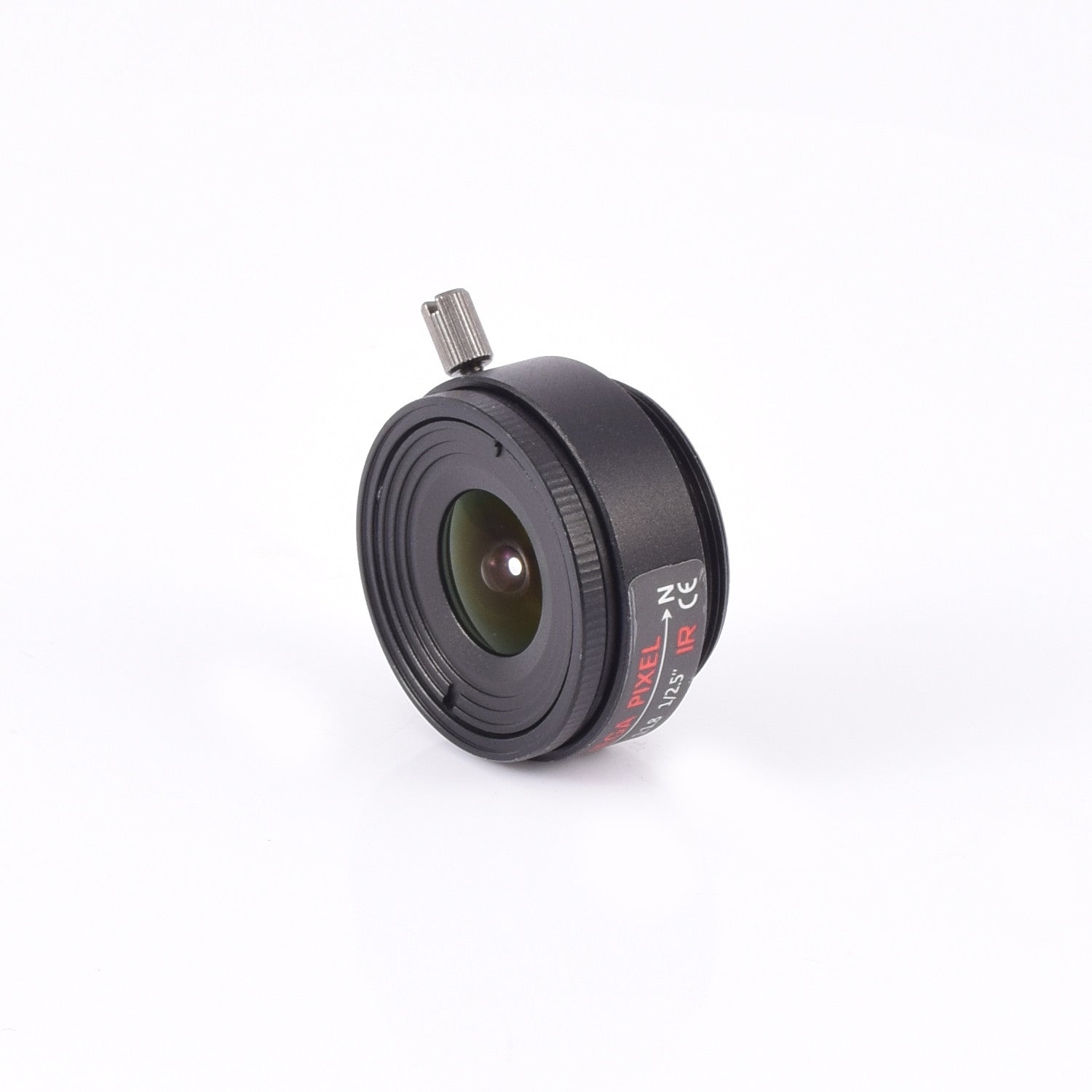

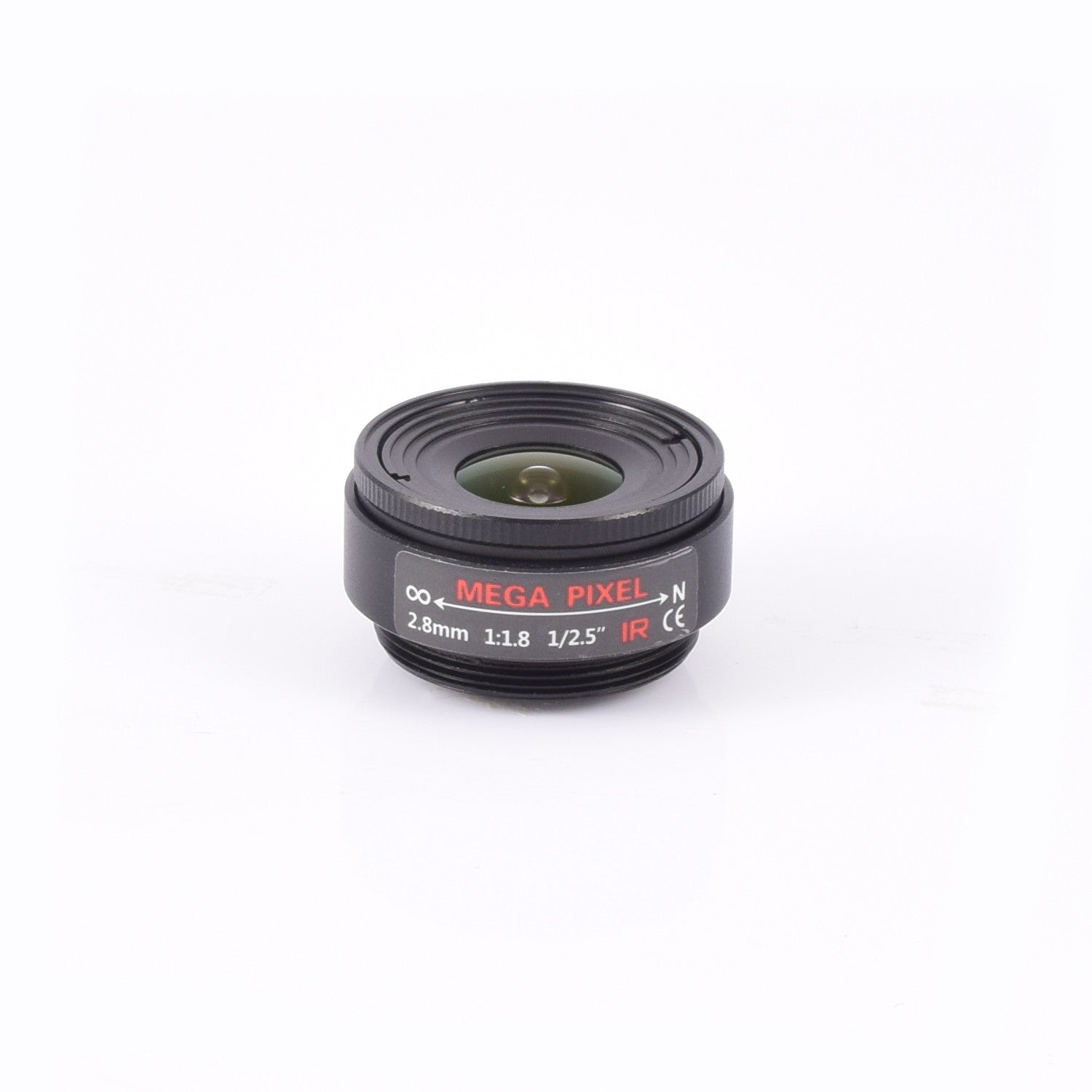

AIDA - CS-2.8F Mega-Pixel Lens

Previous Product | Next Product







DESCRIPTION:



The CS-Mount 2.8mm Fixed Focal Megapixel Lens from AIDA is optimized with the AIDA Imaging GEN Series cameras with 1/3″ Progressive CMOS sensors.







FEATURES:


  • Optimized and tuned with GEN Series Cameras
  • Compatible with 1.3 to 5MP Cameras
  • CS-Mount
  • 1/2.5″ Optical Format
  • Fixed Iris Range


SPECIFICATIONS:



Focal Length:

  • 2.8mm



F-Stop:

  • F1.8



Focus Operation:

  • Manual



Iris Operation:

  • Fixed



FOV (Horizontal):

  • 1/2.5″ : 115°
  • 1/2.8″ : 109°
  • 1/3.2″ : 90°



Image Format:

  • Max. 1/2.5″ Sensor



TV Distortion:

  • -19% with 1/2.5″ Sensor



Mount Type:

  • CS



Operation Temp:

  • -4°F – 140°F



Dimension:

  • Ø30m x 17.6mm / Ø1.18″ x 0.69″



Weight:

  • 28g / 0.06Lbs






INCLUDED:


  • (1) CS-2.8F Mega-Pixel Lens
$38.00
