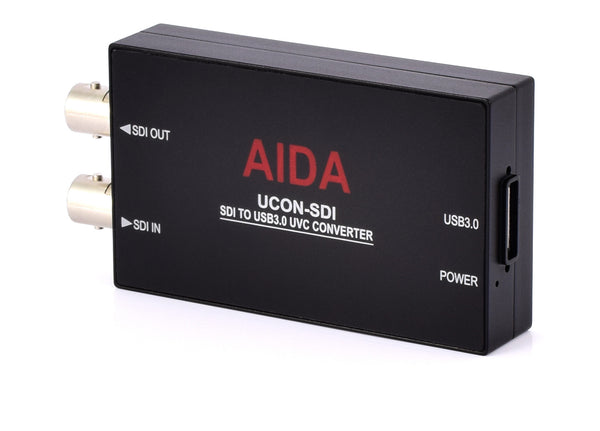

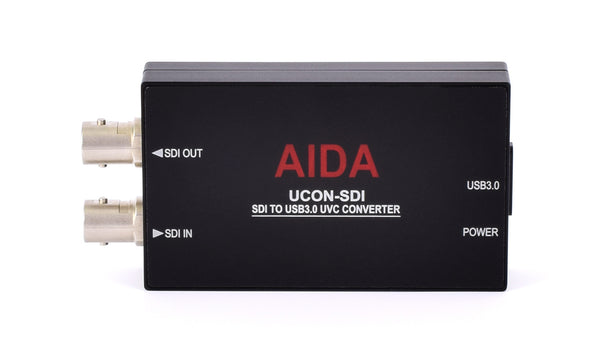

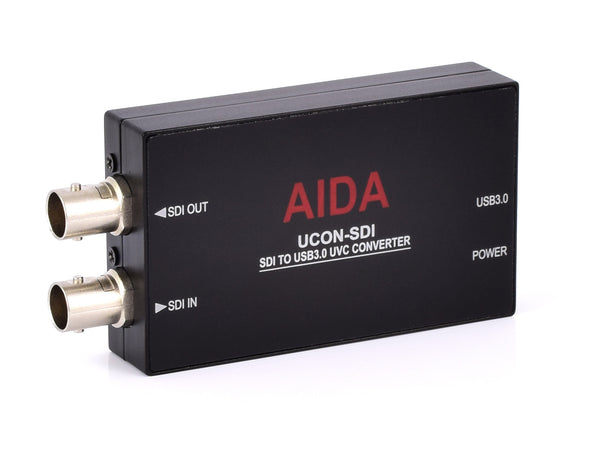

AIDA - UCON-SDI I/O Converter

Next Product





DESCRIPTION:



SMALLER, BOLDER, BETTER, A POWERHOUSE OF A CONVERTER

UCON-SDI USB3.0 converter delivers uncompressed video and embedded audio via 3G-SDI. It features a 3G-SDI input and USB3.0 output makes an ideal use of SDI cameras to PC for recording, editing, videoconferencing, and streaming applications. Compliant with both UVC and SMPTE it is a compliment for all DirectShow software. It is compatible with Windows, Mac OSX, and Linux operating systems. No external power supply and driver installation required, it is powered over USB and compatible with all motherboards and USB3.0 devices. Although compact in size, this powerhouse of a converter delivers data transfers at SuperSpeed™ making Full HD 1080p60 data streaming possible with SDI integrated cameras.







FEATURES:


  • Convert any type of HD-SDI & 3G-SDI video source into USB3.0 signal.
  • Plug and Play Easily connects to PC, Linux, and MAC devices with no additional driver installation required.
  • USB Video Class (UVC) Compliant design makes USB3 series camera work with all DirectShow compatible software and UVC compatible devices.
  • Supports 1080p resolutions up to 60 fps and self-adaptive output resolution and frame rate.
  • Supports SDI Input format SMPTE 292M and SMPTE 424M
  • Hardware-based color space Input 4:2:2(YCbCr) 10bit
  • Compatible with Windows, Mac OSX, and Linux operating systems.
  • Powered through USB port and requires no external power source.
  • Loop Through video output guarantees both USB3.0 converted signal and original quality SDI signal for dual and simultaneous displays.


SPECIFICATIONS:



Video Input:

  • 3G-SDI
  • HD-SDI
  • SD-SDI



Resolution/Rate:

  • 1080 60p/59.94p/50p/30p/29.97p/ 25p
  • 1080 60i/59.94i/50i
  • 720 60p/59.94p/50p/30p/25p
  • 480 & 576 50i / 59.94i



Color Space:

  • 4:2:2 (YCbCr) 10bit



Audio Input:

  • Embedded SDI Audio



OS:

  • Windows 7/8/10, OS X 10.8 and above



Software:

  • USB Video Device Class (UVC)a



Operation Temp:

  • 32° F - 104° F



Dimension:

  • 93mm x 47mm x 17mm / 3.66" x 1.85" x 0.66"



Weight:

  • 68g / 0.14 Lbs



Power:

  • 6W at 12VDC (+9 - +15VDC)



INCLUDED:


  • (1) UCON-SDI I/O Converter
$425.00
