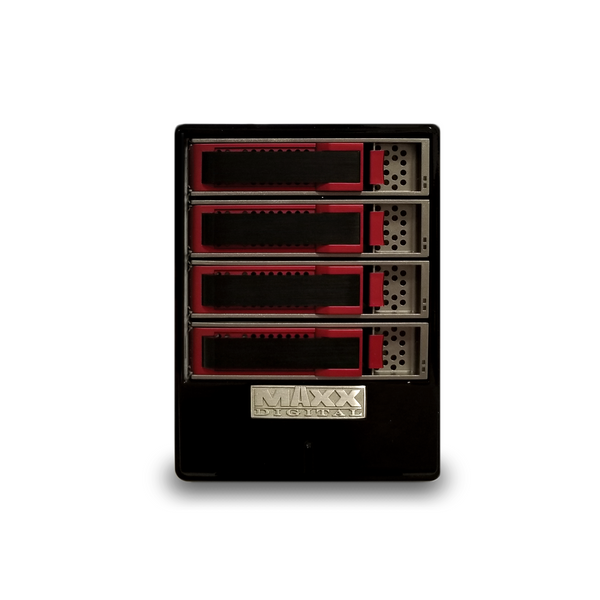

MAXX Digital - ThunderRAID 3 Mini






Maxx Digital has brought the ThunderRAID's little brother to the party! Don't be fooled by the size, this compact RAID array has speeds comparable to the the 8 bay. Maxx Digital has increased the compatibility of this enclosure by offering Thunderbolt 3 performance, simplicity and flexibility.

Thunderbolt 3 technology lets you move data between high-resolution displays and high-performance data devices on a single, compact port. Both data and display signals can be sent and received at the same time through dual 40Gbps channels. A single cable attached to one of the ports provides 2 channels able to achieve the 40Gbps speeds flowing both ways simultaneously. A single Thunderbolt 3 port supports hubs as well as a daisy chain of up to six Thunderbolt 3 devices. The ThunderRAID 3 Mini achieves speeds of 500-550 MB/s in a RAID 5 configuration over Thunderbolt 3 connectivity for the demands of serious HD media creators needs.



  • RAID level 0, 1, 10(1E), 3, 5, 6, Single Disk or JBOD
  • Multiple RAID selection
  • Support up to 1MB stripe size
  • Online array roaming
  • Offline RAID set
  • Online RAID level/stripe size migration
  • Online capacity expansion and RAID level migration simultaneously
  • Online volume set growth
  • Support global and dedicated hot spare
  • Instant availability and background initialization
  • Automatic drive insertion / removal detection and rebuilding
  • Multiple pairs SSD/HDD disk clone function
  • SSD automatic monitor clone (AMC) support
  • Greater than 2TB capacity per disk drive support
  • Greater than 2TB per volume set (64-bit LBA support)
  • Support intelligent power management to save energy and extend service life




  • System status indication through individual activity/fault LED, and alarm buzzer
  • SMTP support for email notification
  • SNMP support for remote manager
  • Enclosure management ready


Drive Support:

  • Up to 4 x 6Gb/s SATA/SSD


Host Connection:

  • Thunderbolt-to-SATA
  • Two Thunderbolt 3 ports
  • Simultaneous bi-directional, 40Gbps transfers over a single cable
  • Dual-protocol support (PCI Express and DisplayPort)
  • Compatible with existing DisplayPort devices
  • Daisy-chaining devices


RAID Management:

  • Field-upgradeable firmware in flash ROM
  • Firmware-embedded web browser-based McRAID storage manager
  • SMTP manager for e-mail alerts
  • SNMP function via ArcHttp proxy server
  • Support Command Line Interface (CLI)
  • API library for customer to write monitor utility




  • (1) ThunderRAID 3 Mini
