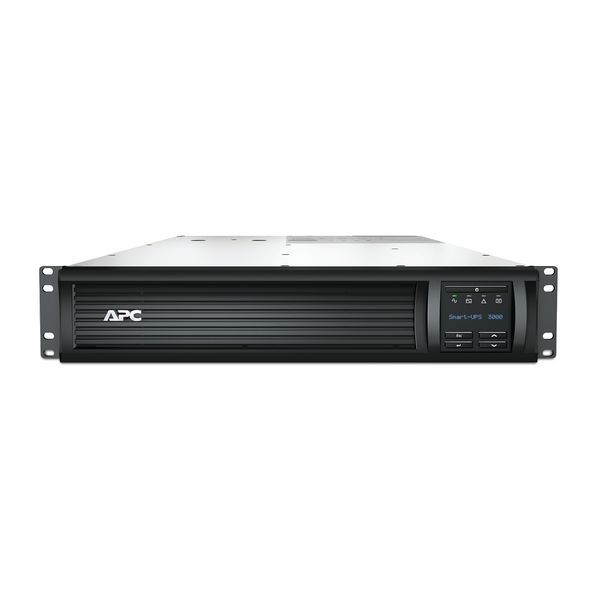

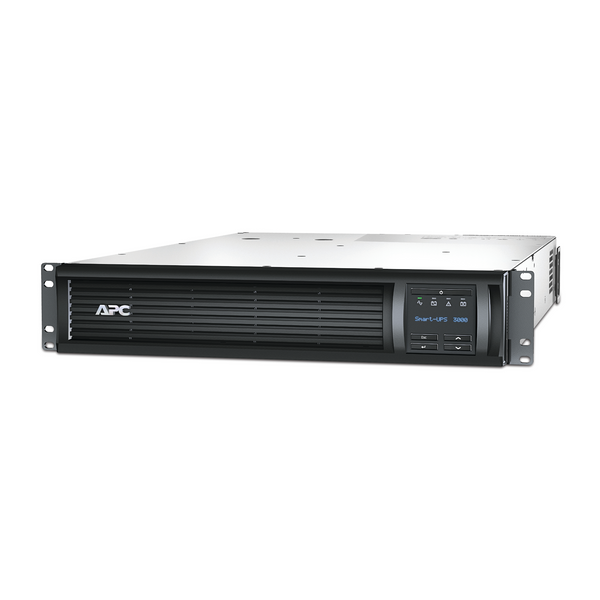

APC - Smart-UPS 3000VA LCD RM 2U 120V with Network Card





DESCRIPTION:



INTELLIGENT AND EFFICIENT NETWORK POWER PROTECTION FROM ENTRY LEVEL TO SCALEABLE RUNTIME.



Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.



FEATURES:


  • Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Warns when a battery is not available to provide backup power.
  • Provides actual kilowatt hours of usage for energy conscious users.
  • Provides remote power management of the UPS over the network.
  • Provides management of the UPS via a serial port.


SPECIFICATIONS:



Output:

  • Output power capacity:
    • 2.7 KWatts / 2.88 kVA
  • Max Configurable Power (Watts):
    • 2.7 KWatts / 2.88 kVA
  • Nominal Output Voltage:
    • 120V
  • Output Voltage Distortion:
    • Less than 5%
  • Output Frequency (sync to mains):
    • 50/60Hz +/- 3 Hz
  • Topology:
    • Line Interactive
  • Waveform type:
    • Sine wave
  • Output Connections:
    • (2) NEMA 5-20R (Battery Backup)
    • (6) NEMA 5-15R (Battery Backup)
  • Transfer Time:
    • 4ms typical
    • 8ms maximum



Input:

  • Nominal Input Voltage:
    • 120V
  • Input frequency:
    • 50/60 Hz +/- 3 Hz (auto sensing)
  • Cord Length:
    • 8ft ( 2.44meters )
  • Input voltage range for main operations:
    • 82 - 144V
  • Input voltage adjustable range for mains operation:
    • 75 - 154V
  • Number of Power Cords:
    • 1



Batteries & Runtime:

  • Battery type:
    • Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time:
    • 3 hour(s)
  • Expected Battery Life (years):
    • 3 - 5
  • RBC Quantity:
    • 1
  • Runtime:
    • 50W - 3 hrs 9 mins
    • 100W - 2 hrs 16 mins
    • 200W - 1 hrs 26 mins
    • 300W - 1 hrs 1 mins
    • 400W - 47 min
    • 500W - 38 min
    • 600W - 31 min
    • 700W - 26 min
    • 800W - 23 min
    • 900W - 20 min
    • 1000W - 17 min
    • 1200W - 14 min
    • 1400W - 11 min
    • 1600W - 9 min
    • 1800W - 8 min
    • 2000W - 6 min
    • 2500W - 4 min



Communications & Management:

  • Interface Port(s):
    • RJ-45 Serial
    • SmartSlot
    • USB
  • Pre-Installed SmartSlot™ Cards:
    • AP9631
  • Control panel:
    • LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm:
    • Alarm when on battery
    • Distinctive low battery alarm
    • Configurable delays



Surge Protection and Filtering:

  • Surge energy rating:
    • 459 Joules



Physical:

  • Maximum Height:
    • 3.39inches ( 86mm , 8.6cm )
  • Maximum Width:
    • 18.9inches ( 480mm , 48.0cm )
  • Maximum Depth:
    • 26.89inches ( 683mm , 68.3cm )
  • Rack Height:
    • 2U
  • Net Weight:
    • 97.62lbs. ( 44.28kg )
  • Shipping weight:
    • 113.94lbs. ( 51.68kg )
  • Shipping Height:
    • 10.0inches ( 254mm , 25.4cm )
  • Shipping Width:
    • 23.62inches ( 600mm , 60.0cm )
  • Shipping Depth:
    • 38.6inches ( 980mm , 98.0cm )
  • Color:
    • Black



Environmental:

  • Operating Environment:
    • 32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity:
    • 0 - 95 %
  • Operating Elevation:
    • 0-10000ft ( 0-3000meters )
  • Storage Temperature:
    • -15 - 45 °C
  • Storage Relative Humidity:
    • 0 - 95 %
  • Storage Elevation:
    • 0-50000ft ( 0-15000meters )
  • Audible noise at 1 meter from surface of unit:
    • 55.0 dBA
  • Online thermal dissipation:
    • 348.0B TU/hr



Conformance:

  • Approvals:
    • CSA
    • ENERGY STAR (USA)
    • UL 1778
    • FCC Part 15 Class A



Sustainable Offer Status:

  • RoHS:
    • Compliant
  • REACH:
    • Contains No SVHCs






INCLUDED:


  • (1) Smart-UPS 3000VA LCD RM 2U 120V with Network Card
