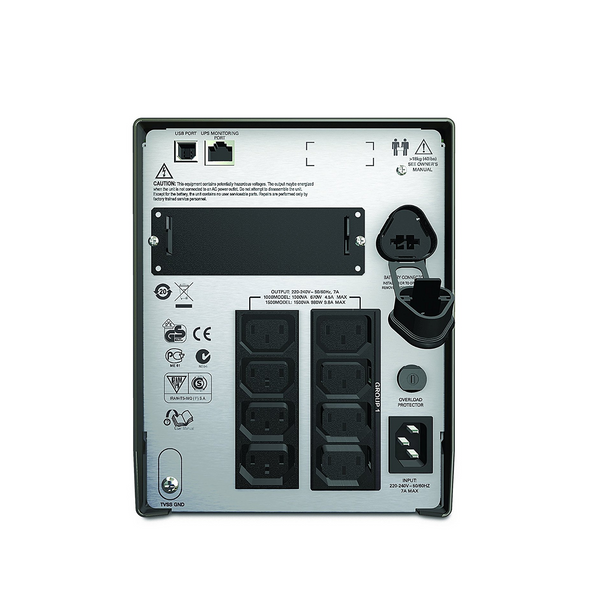

APC - Smart-UPS 1500VA LCD 120V





DESCRIPTION:



INTELLIGENT AND EFFICIENT NETWORK POWER PROTECTION FROM ENTRY LEVEL TO SCALEABLE RUNTIME.



Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.



FEATURES:


  • Provides temporary battery power when the utility power is out
  • Reduces utlility costs, generates less heat
  • Intuitive LCD interface
  • Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
  • Protects connected loads from surges, spikes, lightning, and other power disturbances
  • Automatically starts up the connected equipment upon the return of utility power
  • Warns when a battery is not available to provide backup power
  • Maximizes battery performance, life, and reliability through intelligent, precision charging


SPECIFICATIONS:



Output:

  • Output power capacity:
    • 1.0 KWatts / 1.44 kVA
  • Max Configurable Power (Watts):
    • 1.0 KWatts / 1.44 kVA
  • Nominal Output Voltage:
    • 120V
  • Output Voltage Distortion:
    • Less than 5%
  • Output Frequency (sync to mains):
    • 50/60Hz +/- 3 Hz
  • Topology:
    • Line Interactive
  • Waveform type:
    • Sine wave
  • Output Connections:
    • (8) NEMA 5-15R (Battery Backup)
  • Transfer Time:
    • 4ms typical : 8ms maximum



Input:

  • Nominal Input Voltage:
    • 120V
  • Input frequency:
    • 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections:
    • NEMA 5-15P
  • Cord Length:
    • 6ft ( 1.83meters )
  • Input voltage range for main operations:
    • 82 - 144V
  • Input voltage adjustable range for mains operation:
    • 75 - 154V
  • Number of Power Cords:
    • 1



Batteries & Runtime:

  • Battery type:
    • Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time:
    • 3hour(s)
  • Replacement Battery:
    • RBC7
  • Expected Battery Life (years):
    • 3 - 5
  • RBC Quantity:
    • 1
  • Runtime:
    • 50W - 5 hrs 1 mins
    • 100W - 2 hrs 52 mins
    • 200W - 1 hrs 24 mins
    • 300W - 51 min
    • 400W - 33 min
    • 500W - 23 min
    • 600W - 17 min
    • 700W - 12 min
    • 800W - 10 min
    • 900W - 8 min
    • 1000W - 7 min



Communications & Management:

  • Interface Port(s):
    • SmartSlot
    • USB
  • Control panel:
    • Multi-function LCD status and control console
  • Audible Alarm:
    • Alarm when on battery
    • Distinctive low battery alarm
    • Configurable delays
  • Available SmartSlot™ Interface Quantity:
    • 1



Surge Protection and Filtering:

  • Surge energy rating:
    • 459 Joules
  • Filtering:
    • Full time multi-pole noise filtering
    • 0.3% IEEE surge let-through
    • Zero clamping response time
    • Meets UL 1449



Physical:

  • Maximum Height:
    • 8.62inches ( 219mm , 21.9cm )
  • Maximum Width:
    • 6.73inches ( 171mm , 17.1cm )
  • Maximum Depth:
    • 17.28inches ( 439mm , 43.9cm )
  • Net Weight:
    • 53.0lbs. ( 24.09kg )
  • Shipping weight:
    • 59.9lbs. ( 27.23kg )
  • Shipping Height:
    • 14.8inches ( 376mm , 37.6cm )
  • Shipping Width:
    • 12.91inches ( 328mm , 32.8cm )
  • Shipping Depth:
    • 23.43inches ( 595mm , 59.5cm )
  • Color:
    • Black



Environmental:

  • Operating Environment:
    • 32 - 104 °F ( 0 - 40 °C )
  • Operating Relative Humidity:
    • 0 - 95 %
  • Operating Elevation:
    • 0-10000ft ( 0-3000meters )
  • Storage Temperature:
    • -15 - 45 °C
  • Storage Relative Humidity:
    • 0 - 95 %
  • Storage Elevation:
    • 0-50000ft ( 0-15000meters )
  • Audible noise at 1 meter from surface of unit:
    • 45.0dBA
  • Online thermal dissipation:
    • 135.0BTU/hr



Conformance:

  • Approvals:
    • CSA
    • ENERGY STAR (USA)
    • UL 1778



Sustainable Offer Status:

  • RoHS:
    • Compliant
  • REACH:
    • Contains No SVHCs






INCLUDED:


  • (1) Smart-UPS 1500VA LCD 120V
$559.00
