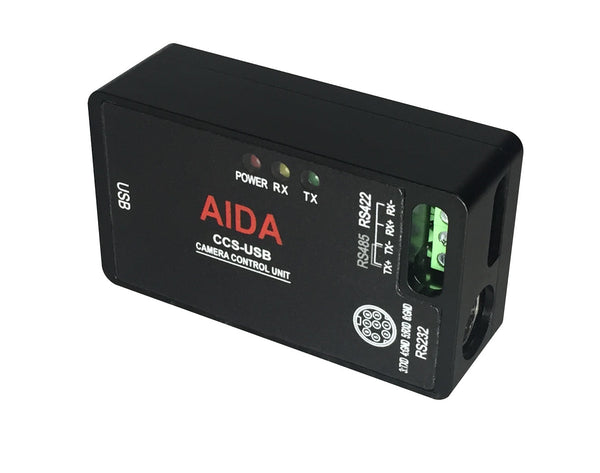

AIDA CCS-USB I/O INTERFACE

DESCRIPTION:

SMALL BUT MIGHTY – One CCS to control them all

The CCS-USB camera control unit and software for PC uses the SuperSpeed™ USB3.0 and multi serial port control, making this the go-to software for all your camera control needs. Simply connect the control unit to your computer via USB, then connect your camera to its onboard RS232, RS485 or RS422 and the software will automatically set up your COM ports. Control up to 7 primary cameras utilizing advanced SONY VISCA™ protocol and up to 255 cameras utilizing PELCO™ protocol. Compatible with Windows and Mac OSX™ operating systems. Includes an RS232 to Cross-RJ45 converter for longer communication relays when you need it most. The camera control unit is designed for mobility and versatility, its compact in size and rugged design truly make the CCS-USB small but mighty and the one CCS to control them all.

FEATURES:

SONY VISCA Compatible and work with most of major VISCA protocol products.
Support PELCO Pan / Tilt / Zoom / Focus protocol.
Control up to 7 VISCA control cameras and 255 third party control cameras.

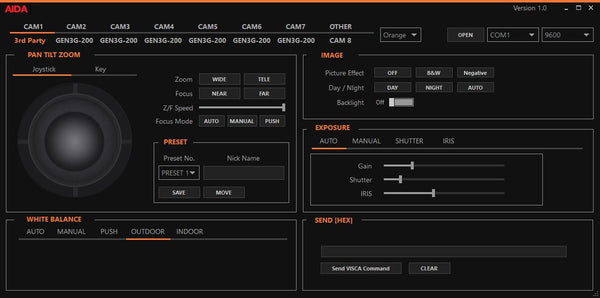

User friendly software interface.
Support RS-232, RS-485, RS-422.
USB interface for easy installation.
Windows and MAC OSX compatible.
Compact and rugged design.

SPECIFICATIONS:

Camera Interface:

RS-232C/RS-485/RS-422: Terminal Block Connector

Protocol:

VISCA for Camera Settng up to 7 Cameras
PELCO for Pan/Tilt/Zoom Control up to 255 Cameras

User Interface:

Graphic User interface

PC interface:

Resolution/Rate:

1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/25p
480 & 576 50i / 59.94i

Compatibility:

All VISCA Protocol Camera
All PELCO Protocol Camera

Camera Control:

RS-232C: 8 Pin Mini Din Connector
RS-485/RS-422: Terminal Block Connector

Accessory:

CBL-RJ45 (RS232 to Cross-RJ45 converter cable)

Operation Temp:

32° F - 104° F

Dimension:

62m x 35m x 19mm / 2.44" x 1.37" x 0.74"

Weight:

50g / 0.11Lbs

Power:

USB Powered

Specification Sheet

APPLICATIONS:

Broadcast
Live Production
Video Conference
Medical
Industrial
Broadcast
Education
Streaming
Science
