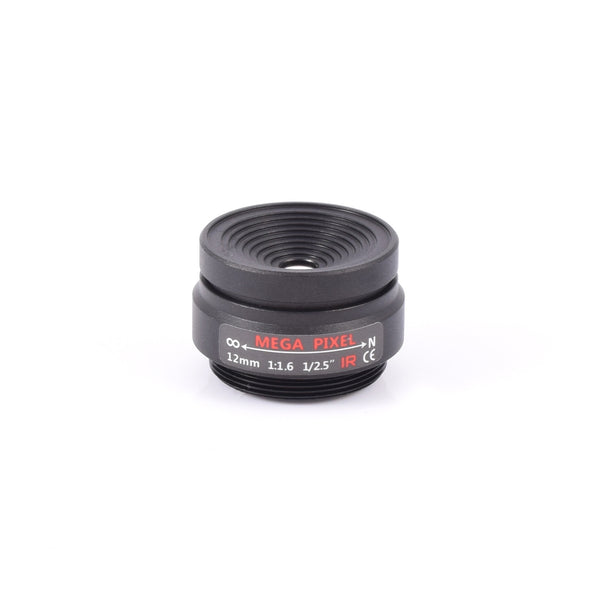

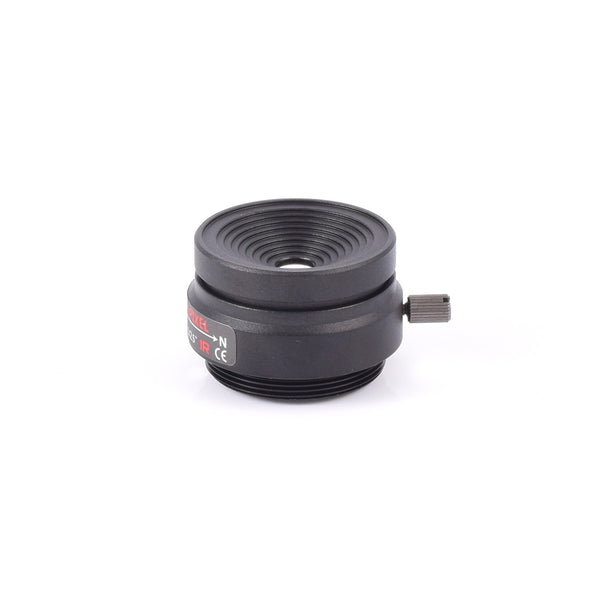

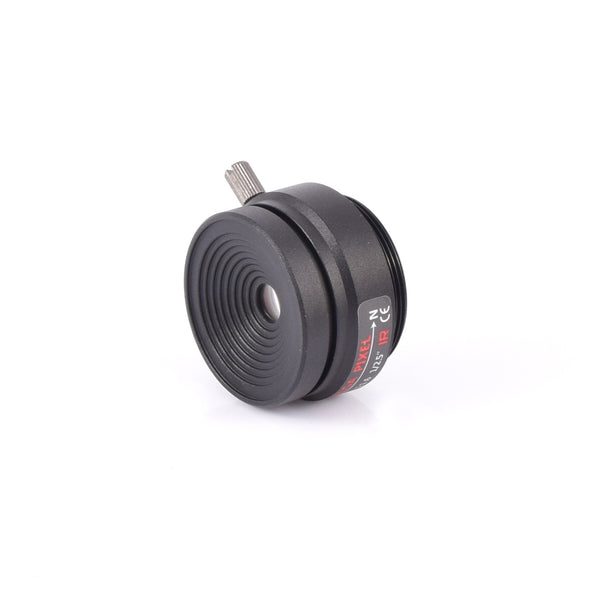

AIDA CS-12.0F MEGA-PIXEL LENS



DESCRIPTION:



The CS-Mount 12mm Fixed Focal Megapixel Lens from AIDA is optimized with the AIDA Imaging GEN Series cameras with 1/3″ Progressive CMOS sensors.



FEATURES:


  • Optimized and tuned with GEN Series Cameras
  • Compatible with 1.3 to 5MP Cameras
  • CS-Mount
  • 1/2.5″ Optical Format
  • Fixed Iris Range


SPECIFICATIONS:



Focal Length:

  • 12mm

F-Stop:

  • F1.6

Focus Operation:

  • Manual

Iris Operation:

  • Fixed

FOV (Horizontal):

  • 1/2.5″ : 30.8°
  • 1/2.8″ : 27°
  • 1/3.2″ : 15.4°

Image Format:

  • Max. 1/2.5″ Sensor

TV Distortion:

  • 1.5% with 1/2.5″ Sensor

Mount Type:

  • CS

Operation Temp:

  • -4°F – 140°F

Dimension:

  • Ø30m x 22.2mm / Ø1.18″ x 0.87″

Weight:

  • 27g / 0.06Lbs

Specification Sheet


APPLICATIONS:


  • Broadcast
  • Live Production
  • Video Conference
  • Medical
  • Worship
  • Theater
  • Education
  • Security
$40.00
