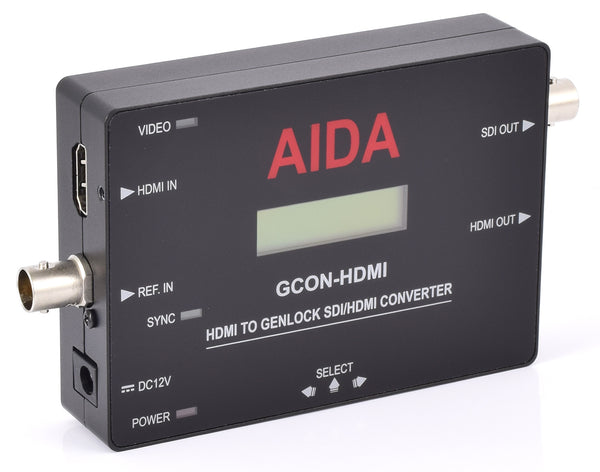

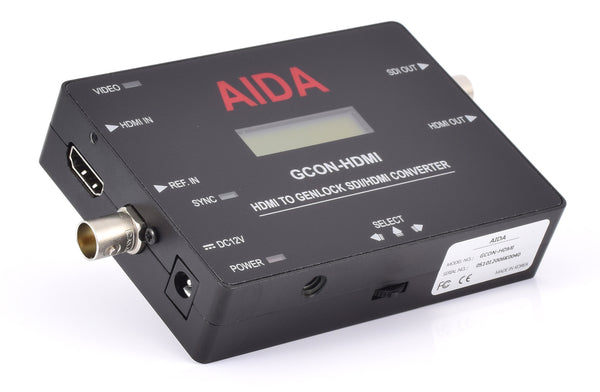

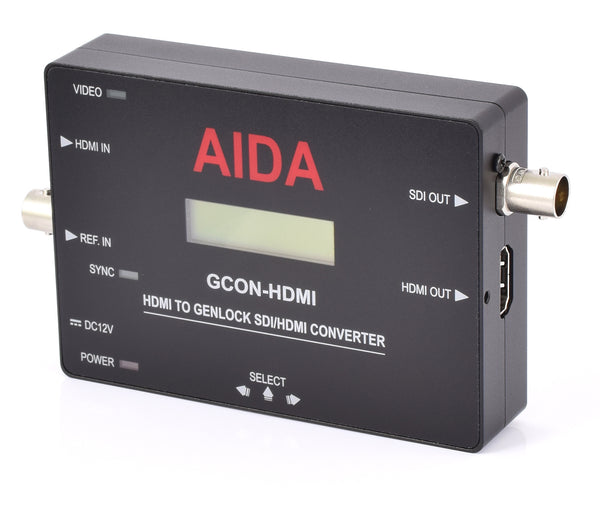

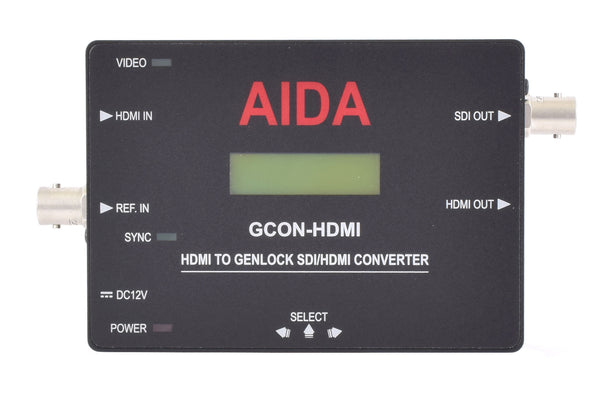

AIDA - GCON-HDMI Genlock Converter



DESCRIPTION:



THE PERFECT CAMERA SIDEKICK – Professional HDMI Genlock Converter



GCON-HDMI converts HDMI source to Genlock SDI/3G-SDI and HDMI with zero latency keeping the integrity of the original source feed intact. GCON-HDMI supports 1080p resolutions up to 60 fps. Featuring Tri-Level Sync Genlock synchronizes GCON-HDMI and other system components for seamless vertical interval switching between sources. GCON-HDMI supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. With its rugged and portable design makes GCON-HDMI a perfect camera sidekick to where it’s needed most.



FEATURES:


  • HDMI up to 1080p60 full HD Resolution Input
  • Simultaneous SDI and HDMI Loop Output
  • Highly compatible with Tri Level reference input SMPTE 292M & 424M
  • Compliant and multi-video format including 59.94Hz
  • SMPTE 352M Ancillary Data supported
  • Embedded audio pass through via SDI & HDMI
  • Adjustable V-sync & H-sync phases
  • Divisional picture comparison
  • Built in Pattern Generator
  • Built in LCD menu screen
  • Built in menu control button
  • Versatile, compact and rugged design


SPECIFICATIONS:



Video Input:

  • HDMI 1.3

Resolution/Rate:

  • 1080 60p/59.94p/50p/30p/29.97p/ 25p
  • 1080 60i/59.94i/50i
  • 720 60p/59.94p/50p/30p/25p

Color Space:

  • 4:2:2 (YCbCr) 10bit

Video Output:

  • Genlocked HD-SDI/3G-SDI
  • Genlocked HDMI 1.3a

Genlock Control:

  • ON/OFF
  • H Sync & V Sync Adjustment

Audio Control:

  • Audio Bits (16, 20, 24 Bits)

Payload ID:

  • ON/OFF

Pattern Generate:

  • Thirteen Patterns

Audio Input:

  • 8 Channels Embedded HDMI Audio

Standard:

  • SMPTE 292M
  • SMPTE 424M

Synchronization:

  • Genlock External Tri-Level Input

Control:

  • OSD Button & Text LCD

Operation Temp:

  • 32° F - 104° F

Dimension:

  • 130mm x 75m x 24mm / 5.11" x 2.95" x 0.94"

Weight:

  • 173g / 0.38Lbs

Power:

  • 6W at 12VDC (+9 - +15VDC)

Specification Sheet


APPLICATIONS:


  • Broadcast
  • Live Production
  • Video Conference
  • Medical
  • Worship
  • Theater
  • Education
  • Streaming
$495.00
