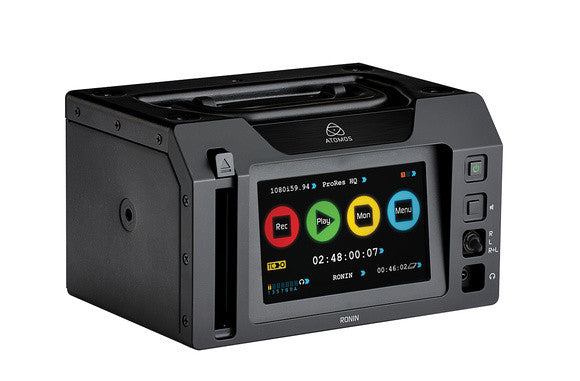

Atomos - Ronin Portable Recorder / Player / Monitor

FEATURES:

• The Ronin offers 12 channels of SDI embedded 48kHz 16-bit audio
• AC power drives the Ronin with continuous battery backup for emergency situations.
• Open up Apple ProRes and Avid DNxHD post production quality to thousands of devices

SPECIFICATIONS:

PHYSICAL:

• Weight:
  • 1.8kg / 3lb 15oz (Ronin)
• Rack height:
  • 3Ru

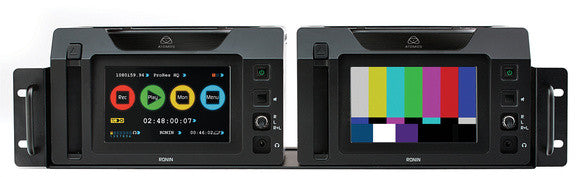

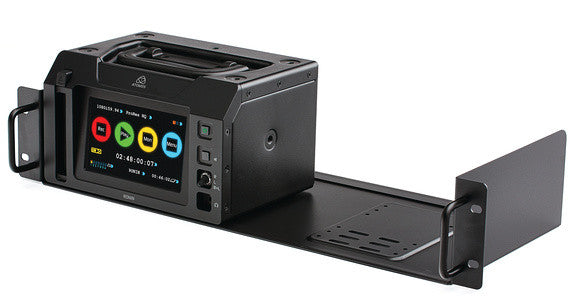

• Rack mounting:
  • Optional rack shelf
• Dimensions (W x H x D mm):
  • 2202 x 120 x 160mm, 8.0 x 4.7 x 6.3” (Ronin)
• Construction:
  • Steel construction for durability
• Cooling:
  • Heat sink, fanless

POWER:

• Operating power (including SSD):
  • 3.3W (monitoring only) / 6.8W (Rec, Mon, Play)
• Compatible batteries:
  • NP-F series and supporting accessories
• Input voltage (battery):
  • 6.2V to 16.8V
• DC Out:
  • Yes
• Continuous power:
  • AC, battery & DC

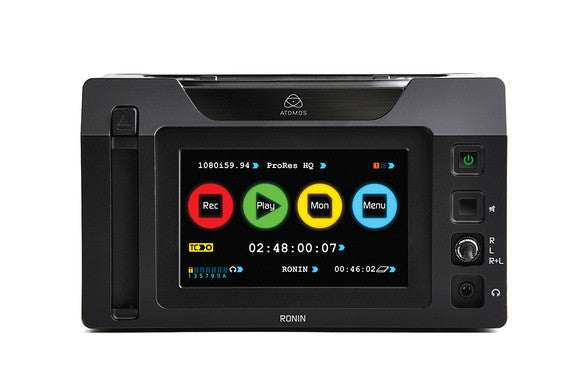

TOUCHSCREEN:

• Size:
  • 5”
• Resolution:
  • 800 x 480
• PPI:
  • 220
• Aspect ratio:
  • 16:9 native / 4:3 Letterbox
• Color standard:
  • SMPTE
• Look up table (LUT) support:
  • No
• Technology:
  • LCD (resistive touch)

HDR:

• AtomHDR:
  • No
• Supported Log formats:
  • N/A
• Supported Gamuts:
  • N/A
• Bit depth:
  • 8-bit

VIDEO INPUT/LOOP OUT:

• HDMI:
  • No
• SDI:
  • 1 x HD/SD-SDI 1.5G (SMPTE)
• Signal:
  • Uncompressed true 10-bit or 8-bit 422 (camera dependent)

VIDEO OUTPUT (PLAY OUT):

• HDMI:
  • No
• SDI:
  • 1 x HD/SD-SDI 1.5G (SMPTE)
• Signal:
  • Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

SUPPORTED CODECS & FRAME RATES (RECORD & PLAYBACK):

• Video to ProRes / DNxHR:
  • Codecs:
    • Apple ProRes HQ, 422, LT
    • AVID DNxHD 220x, 220, 145, 36
  • Frame rates:
    • 1080p; 24/SF24/25/SF25/30/SF30
    • 1080i; 50/60i
    • 720p; 50/60p
    • SD 480i, 576i

ONBOARD PROCESSING:

• HDMI:
  • 24/25/30pSF > 24/25/30p (2:2 pulldown)
  • 60i > 24p (3:2 pulldown)
• SDI:
  • via optional Connect converter
• Analogue audio:
  • No

AUDIO IN/OUT (48kHz PCM AUDIO):

• HDMI:
  • No
• SDI:
  • 12ch 48kHz 16-bit
• Analogue audio:

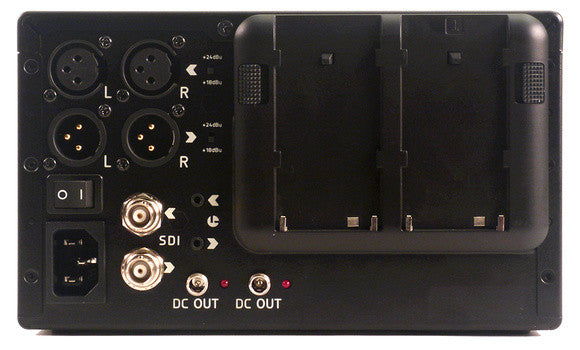

  • 2 x XLR in & 2 x XLR out on rear per record channel.
• Processing:
  • Gain control on line in & headphone output
• Maximum audio quality:
  • 16-bit, 48kHz
• Audio delay:
  • No

REMOTE START/STOP:

• HDMI:
  • No
• SDI:
  • SDI trigger camera selectable
• RS422:
  • No
• AMP:
  • No
• Serial:
  • LANC control - Slave

TIMECODE:

• HDMI:
  • No
• SDI:
  • Embedded timecode from camera or video device
• LTC In:
  • No
• GenLock In:
  • No

PLAYBACK:

• Playlist:
  • No
• Playback options:
  • Loop in & out markets

RECORDING:

• Dual channel:
  • No
• Continuous record:
  • No
• Pre-roll record:
  • No
• Custom timelapse:
  • No
• Meta data tagging:
  • Yes (Favorite, Reject)

RECORDING MEDIA Media:

• Drive slots:
  • 1 per device
• Drive connection types:
  • SATA
• Supported media (Approved List at atomos.com/drives):
  • HD
  • CFast 1.0, SSD 2.5”, HDD (5,400 up to 1080p30)
• Master caddy case:
  • Master Caddy I (included)
  • 75mm x 105mm x 12mm
• Master caddy dock :
  • 2.5” SATA to USB 2.0/3.0
• Supported applications:
  • FCPX/FCP7+
  • Media Composer 5.0+
  • Premiere 5.5+
  • EDIUS 6.0+
  • Vegas Pro 10+
  • Lightworks
  • Autodesk Smoke 2015
• XML support:
  • FCPX XML native
  • FCP7 supported with conversion (Adobe compatible)

INCLUDED:

• Ronin unit
• docking station & leads
• 5 x master caddy cases
• 2 x Atomos 2600mAh battery
• D-Tap adapter
