Blackmagic Design - HyperDeck Studio Pro

DESCRIPTION:

HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get built in Thunderbolt for computer capture and UltraScope software for live scopes!

Professional broadcast deck with 6G-SDI, component, composite, XLR and HiFi audio, HDMI and more for recording and playback of all formats up to 2160p30 on to solid state disks.

HyperDeck Studio includes the highest quality 3G-SDI and HDMI connections, so you can connect to virtually any camera, monitor or SDI router. Connect your camera’s HDMI or SDI output and record the highest 10-bit uncompressed video, bypassing compression formats that cameras use to reduce file size. HyperDeck Studio’s HDMI output is perfect for connecting to monitors and projectors. HyperDeck Studio Pro also includes analog component video and XLR audio connections, plus 6G-SDI for HD and Ultra HD up to 2160p30. The advanced HyperDeck Studio 12G includes the latest technology 12G-SDI and HDMI 2.0 for high frame rate capture and playback of all SD, HD and Ultra HD video formats up to 2160p60!

Connections:

SDI Video Input - 1
SDI Video Output - 4, Single Link or Quad Link.
SDI Rates - 270Mb, 1.5G, 3G, 6G.
HDMI Video Input - 1 x HDMI type A connector including Ultra HD 4K support.
HDMI Video Output - 1 x HDMI type A connector including Ultra HD 4K support.
Analog Video Input - Y, B-Y, R-Y
Analog Video Output - Y, B-Y, R-Y
Analog Audio Input - 2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment.
Analog Audio Output - 2 x XLR connectors for professional balanced analog audio.
Timecode Connections - 1 x XLR in and 1 x XLR out.
SDI Audio Input - 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
SDI Audio Output - 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Input - 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Output - 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
Reference Input - Tri-Sync or Black Burst.
Recorder Configuration - Front panel configurable or USB 2.0 high speed interface.
Computer Interface - 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.

SPECIFICATIONS:

SD Video Standards:

525i59.94 NTSC
625i50 PAL

HD Video Standards:

720p50
720p59.94
720p60
1080p23.98
1080p24
1080p25
1080p29.97
1080p30
1080p50
1080p59.94
1080p60
1080PsF23.98
1080PsF24
1080PsF25
1080PsF29.97
1080PsF30
1080i50
1080i59.94
1080i60

Ultra HD Video Standards:

2160p23.98
2160p24
2160p25
2160p29.97
2160p30

SDI Compliance:

SMPTE 259M
SMPTE 292M
SMPTE 296M
SMPTE 425M Level B

SDI Metadata Support:

Time Code: HD RP188. Closed Captioning: CEA-708.

Audio Sampling:

Television standard sample rate of 48kHz and 24-bit

Video Sampling:

4:2:2

Color Precision:

10-bit

Color Space:

REC 601
REC 709

Copy Protection:

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media:

2 x SSD for SD, HD and Ultra HD recording.

Media Type:

SATA-II or SATA-III solid state disc.

Media Format:

Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs:

Uncompressed QuickTime, Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60

Built-in Control Panel:

12 buttons for transport and menu control, 2.2 inch color display.

External Control:

RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.

Display:

Built-in LCD for video, audio and timecode monitoring and menu settings.

Physical Installation:

1 rack unit size. Less than 7 inches deep.

Power Supply:

1x Internal 100 - 240V AC.

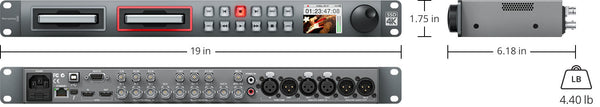

Dimensions:

19in x 1.75in x 6.18in

Weight:

4.4 lbs

Specification Sheet

INCLUDED:

Software Included - Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
SD card with software, user manual, Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
