Boland - 4K31-12G



FEATURES:

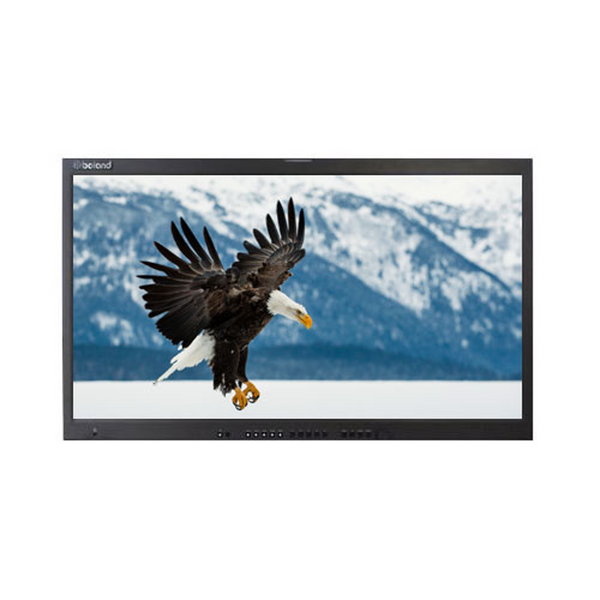

Model 4K31-12G: 31” 4K Pro Broadcast Monitor

  • 12G SDI Single Link, 3G SDI x 4 Quad Link (Square Div & 2SI)
  • Built-in Quad Multi-view (SDI 4 Channel)
  • HDMI 2.0
  • 3D LUT Color Space Calibration
  • Audio Level meter
  • Waveform, Vector Scope, Audio Meters / De-embed
  • Focus Assist
  • Time code •H/V delay •Markers •Multiple Aspect Ratios
  • Calibrated Rec 709 color space


SPECIFICATIONS:



Active Area (Diagonal):

  • 31”/ 787.7mm

MODES:

  • High & Standard Definition Video Modes:
    • 4096×2160(23.98/24/25/29.97/30/50/59.94/60p)
    • 3840×2160(23.98/24/25/29.97/30/50/59.94/60p)
    • 2048x1080p(24/25)
    • 1920x1080p(50/60/30psf/25psf/24psf/30/25/24)
    • 1920x1035i(60/59.94)
    • 1920x1080i(50/59.94/60)
    • 1280x720p(24/25/30/50/59.94/60)
    • 480i(59.94)
    • 576i(50)
  • HDMI:
    • 480p
    • 720p
    • 1080p
    • 2160p



INPUTS:

  • Digital Video Inputs (SDI):
    • 12G
    • 3G
    • HD SDI (SMPTE ST 2082 /SMPTE 259M/292/296)
  • Digital Video Inputs(HDMI):
    • up to 2160p HDMI



PICTURE:

  • Aspect Ratios:
    • Full Screen
    • 16:9
    • 4:3
  • Pixel (RGB Trio) Arrangement:
    • 4096 H x 2160 V Pixels (8,847,360 Pixes, 17:9)
  • Pixel (RGB Trio) Pitch, Depth:
    • 0.0567 mm x 0.1701 mm 1.07 Billion colors 10bit
  • Brightness, typical, 0°:
    • 400 cd/m2
  • Contrast Ratio, 0°:
    • 1000:1
  • Color Processor:
    • 10 bit color Processor
  • Viewing Angle, contrast>10:1:
    • R/L 178(Typ.)
    • U/D 178(Typ.)
  • Panel Response Time:
    • 14 ms (G to G)



CONTROLS:

  • User Controls:
    • ST-BY
    • SINGLE
    • 2SI
    • QUAD
    • HDMI
    • AUDIO
    • F1 ~5
    • MENU
    • SEL/INPUT
    • UP
    • DOWN
    • ADJUST
  • Remote Controls:
    • TCP/IP
    • RS-232
    • RS-422



BACKLIGHT:

  • Light Source (standard):
    • Light Emitting Diode (GBr LED) Backlight system
  • LED Life:
    • 30,000 hrs



CONNECTORS:

  • Video Connectors:
    • BNC x 6 12G SDI 2 Channel Input/Only 12G Quad SDI 2 Chanel Input/ SDI 2 Channel Output
  • HDMI:
    • HDMI x 1 HDMI Input



POWER:

  • DC Power:
    • 24 VDC ±10%
  • DC Connector:
    • XLR-5M (pin 1,2=Gnd, pin 4,5=+volts)
  • AC Power (detached power supply included):
    • 100-240 VAC, 50/60 Hz
  • AC Power Connector:
    • IEC 320-C14 3 pin Male



DISPLAY:

  • Window (Display Area):
    • 27.43 x 14.46” / 696.73 mm x 367.416 mm
  • Cabinet Dimensions:
    • 29.01 x 17.0 x 3.12” / 737.0 x 432.0 x 79.4 mm
  • Weight:
    • 37.47 lb / 17 kg
  • Operating (full spec):
    • 0 ~ +50°C, no condensation, 0 ~ 10,000 feet (3,048m)
  • Storage:
    • -20 ~ +60°C, no condensation, 0 ~ 40,000 feet (12,192m)



Specification Sheet



INCLUDED:


  • ITEM
  • ITEM
  • ITEM
$6,995.00
