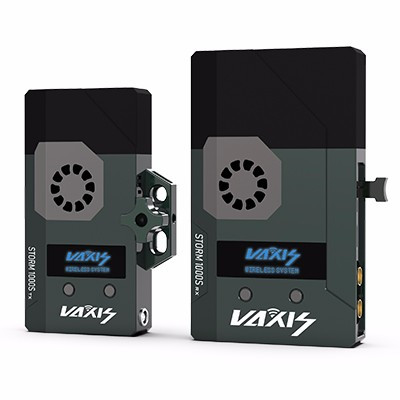

VAXIS STORM - 1000S

Prizes - Light This Location

DESCRIPTION:

STORM 1000S is a brand-new design that is best for higher end productions that need a mix of long range and sleek design. Since all STORM series models are compatible, it also serves perfectly as a shorter range and smaller receiver option when used in conjunction with the flagship STORM 3000.

Range/ Transmission

With cutting edge technology built-in antennas, true line-of-sight range is boosted and stabilized up to 1000 feet and will pass through flags, timecode and metadata.

Durable Exterior Design

The STORM 1000 is a brand-new design. The recessed ports prevent the most common damage on sets, dropping. Buttons and I/O ports are on the same side making the unit more accessible and provides flexibility when rigging. On top all that, the mounting is made easy and elegant with the mounting bracket to make rig every low profile and streamlined for Gimbal, drone and Steadicam work. Without exterior antennas never worry about bending or breaking an antenna again.

OLED Info Readout

The bright OLED display gives users access to all crucial information to make the shoot possible. The display shows battery voltage, video formats, channel, fan speed and transmission strength.

FEATURES:

Uncompressed 3G/HD/SD-SDI and HDMI,SDI loop out.
Distance: 1500ft /500 meters.
Time delay: Less than 1 millisecond.
Highest resolution 1080p 60,no compression.
FM: OLED and tact switch.
Support metadata, timecode, and start/stop flags.
Cooling fan system can be turned on/ off
Plug and Play.
5GHz ISM frequency band, coexist with WIFI.
Industrial metal case, stable and reliable performance.

SPECIFICATIONS:

Video

Inputs: SDI: 1 x BNC (75 Ohm), 3G/HD/SD, HDMI: 1 x HDMI Type A Receptacle
Outputs: 1 x BNC (75 Ohm), 3G/HD/SD, 1 x Loop-Through
Color Sampling: SDI: YCbCr 4:2:2, 10-bit (8-Bit when Format Conversion is Enabled)
hdmi: RGB 4:4:4, 8-Bit
Latency: (<0.001 Seconds TX to RX without Format Conversion)

Supported Input Resolutions

1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50

Timecode:

Interfaces

USB Interface Functionality: Upgrade via Mini-USB

Network

Wireless

FCC Approved Frequencies (5190/ 5230/ 5790/ 5830)

Encryption

AES-128

Rf Power

17 dBm EIRP

Range

Up to 1000ft line of sight

Multicast

Multicast Up to UnlimitedRx

Power

Input: 2-Pin Connector 7 to 36 VDC
Power Consumption: Nominal 6 W (Measured at 1080p60)
Operating Temperature: 32 to 122°F / 0 to 50°C

Mountability

Transmitter: 1 x 1/4"-20 Threaded Mounting Hole
Receiver: 3 x 1/4"-20 Threaded Mounting Hole

INCLUDED:

1x unit transmitter
1x unit receiver
2x power cable (LEMO 2 pin-male to D-Type receptacle)
1x user manual
1x VAXIS flight case
