Modern Film Tools - Horseshoe i/o Top Plate For KOMODO




Specialized Products for Digital Cinema.

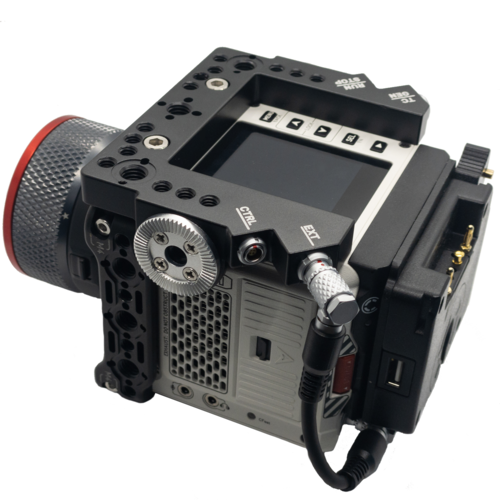

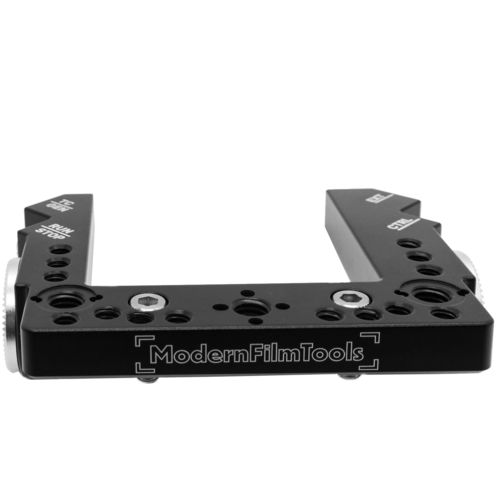

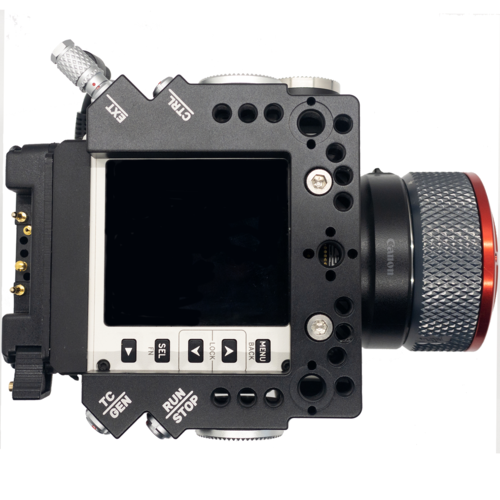

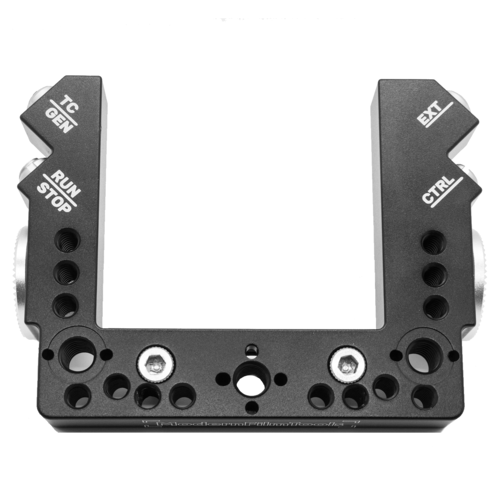

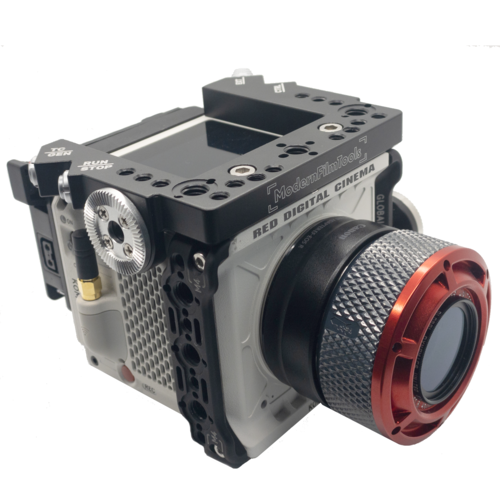

The HORSESHOE i/o Top Plate connects with Komodo’s EXT with the included a 9-pin to 9-pin jumper cable and breaks out RED CTRL, TIME CODE + GENLOCK and RUN/STOP trigger port and allows the use of both BP batteries or 3rd Party battery plate adapters.




  • 5 pin connector for Timecode input with Genlock input via pin #4 allowing for TC & GEN input to camera with a single cable. (pin1: GND, pin-2: LTC-IN, pin-3: N/C, pin-4: GEN-IN, pin-5: LTC-OUT)

  • 3 pin run / stop trigger connector for standard run/stop cables and FIZ control systems. (pin1: GND, pin2: N/C, pin3: GPI)

  • 4 pin connector for RED CTRL (RCP2 / Komodo protocol) (pin-1: GND, pin-2: RX, pin-3: GPO, pin-4: TX)

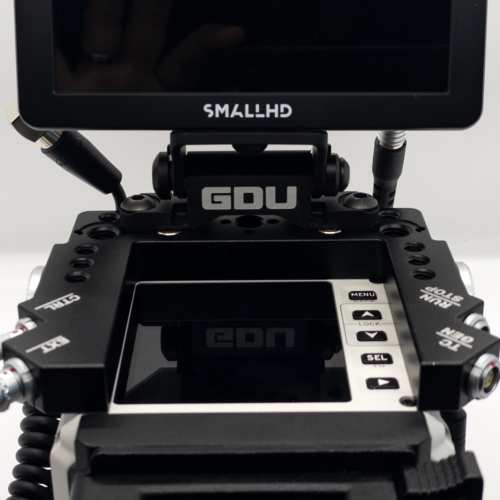

  • Compatible with GDU KOMODO MONITOR MOUNT

  • Compatible with GDU Timmy Ribs for KOMDOD

  • Compatible with KipperTie Revolva RF/PL

  • Compatible with DSMC2 top handles





  • 5 lbs



  • 101.6 x 107.95 x 19.05 mm (4 x 4.25 x .75 in)





      • (2) 1/4-20 x captured screws

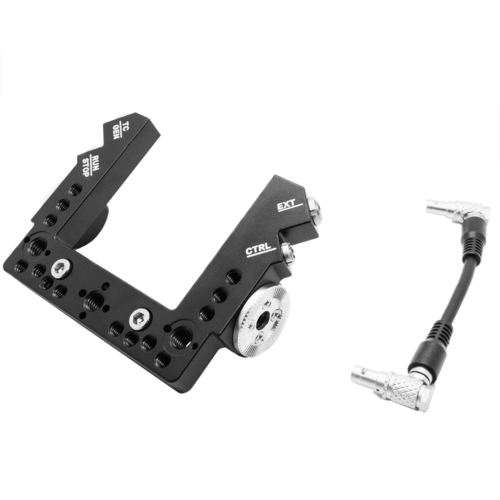

      • (1) EXT to EXT 9-pin Jumper Cable (Komodo camera EXT port > HORSESHOE i/o Top Plate)

      • (1) Adapter Plate for Wooden Camera - Top Mount Only (RED Komodo, ARCA Swiss) w/(2) low profile 1/4-20 screws
