RED - RED PRO CFEXPRESS



DESCRIPTION:



Designed in collaboration with Angelbird Technologies to specifically meet the high-performance needs of the V-RAPTOR™️ system and 8K acquisition, the RED®️ PRO CFexpress 660GB, 1TB, 1.3TB, 2TB, and 4TB are the official certified media cards for the V-RAPTOR camera system. The media is CFexpress™️ 2.0 Type B compliant and supports precision recording of high bit-rate files with industrial-grade performance and durability extended through the capacity of the card.

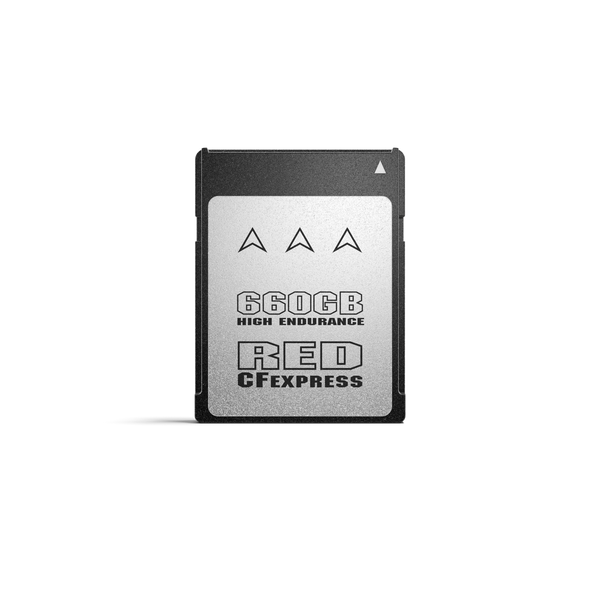

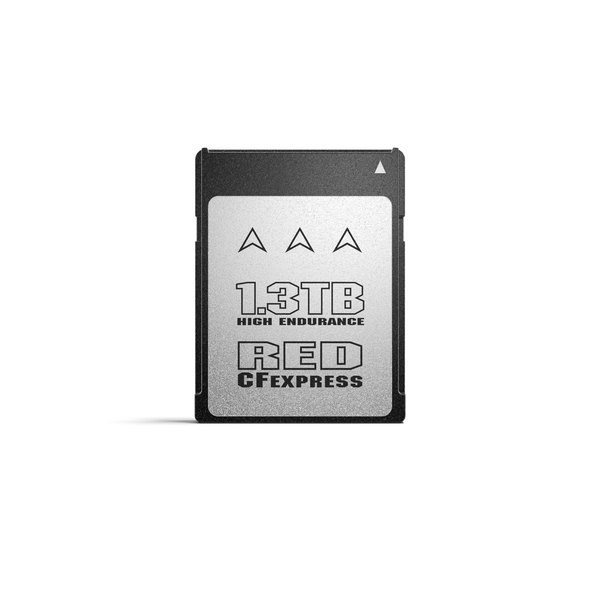

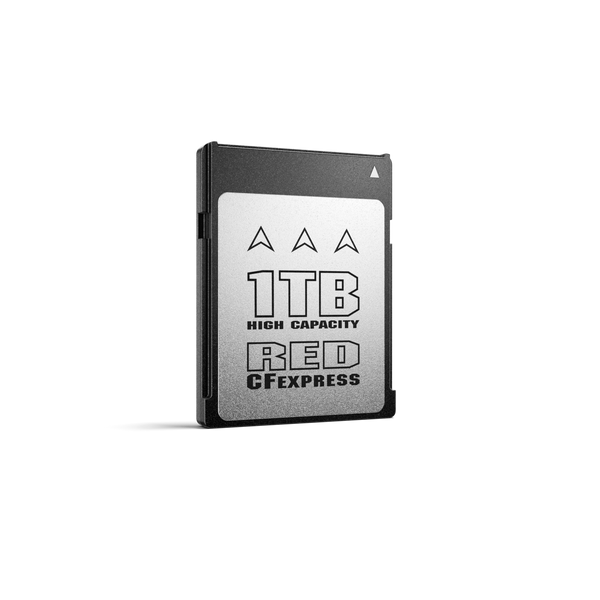

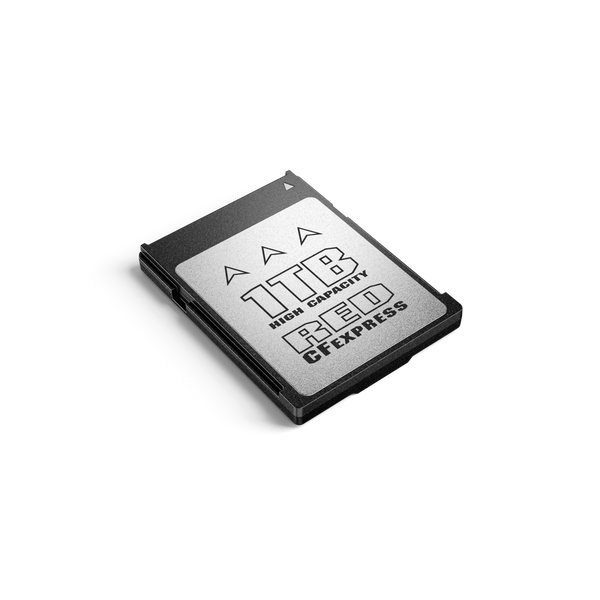

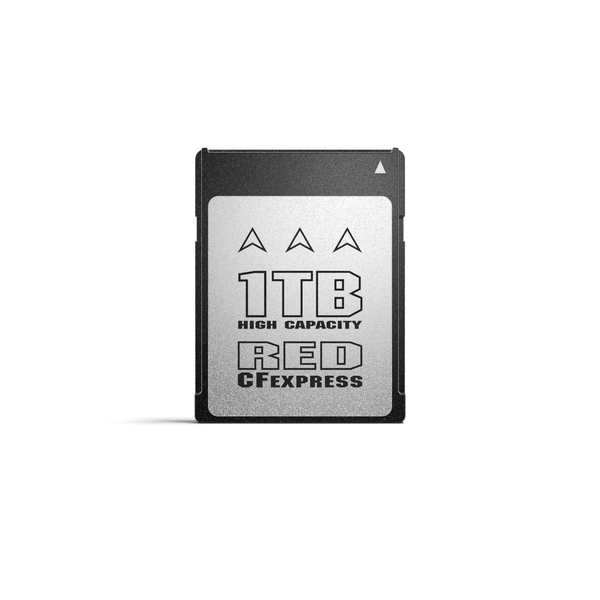

There are five available versions of the RED PRO CFexpress card:

1TB, 2TB, and 4TB High Capacity - These cards meet all of RED’s quality, performance, and endurance specifications, with comparable performance to prior RED media options (e.g. RED MINI-MAG®️s).
660GB and 1.3TB High Endurance- These cards have the same underlying hardware (as the 2TB and 4TB option) but achieves a further extended lifetime by running in an overprovisioned mode.
For more details and guidance on what card might be right for you, click here.
All first party officially certified media has undergone extensive and rigorous testing to ensure optimized performance and reliability. RED highly recommends using this media or otherwise consult the RED APPROVED accessories list at https://www.red.com/third-party-accessories for alternative options.



RED PRO CFexpress Cards are eligible for an extended 36 month limited warranty provided by Angelbird in Austria. Angelbird’s warranty includes individualized customer service, technical support and free data recovery service on hard- and software level. The data recovery service covers media that has encountered physical damage and/or software issues such as data or file corruption. For media issues or troubleshooting, please visit www.angelbird.com/support. Visit their website at www.angelbird.com/warranty-activation and activate your product warranty within 30 days of purchase.



COMPATIBILITY: RED PRO CFexpress is not compatible with DSMC®️, DSMC2®️, RED RANGER®️ or KOMODO®️ camera systems.





    FEATURES:


    • High Capacity and High Endurance units available
    • Designed to meet the high demands of V-RAPTOR
    • CFexpress™️ 2.0 Type B compliant


    SPECIFICATIONS:



    Dimensions:

    • Height: ~1.52 in. (38.5 mm)​​
    • Width: ~1.17 in. (29.6 mm)​
    • Depth: ~0.15 in. (3.8 mm)​



    Weight:

    • Approximately 0.016 lbs (7 g)​​​



    Max Data Rates:

    • V-RAPTOR 8K up to 800 MB/s​​



      Operating Temperature:

      • 10℃ to 70℃ (14°F to 158°F)



      Storage Temperature:

      • -20℃ to 85℃ (-4°F to 185°F)



      Operating Humidity:

      • 5% to 95%, non-condensing



      Shock Resistance:

      • 50 G @ 10-2000Hz



      Vibration Resistance (Operating):

      • 15 G



      Usable Capacity (fat32):

      • RED PRO CFexpress 4TB: 4096805658624 bytes
      • RED PRO CFexpress 2TB: 2048480824832 bytes
      • RED PRO CFexpress 1.3TB: 1320266981376 bytes
      • RED PRO CFexpress 1TB: 1024209543168 bytes
      • RED PRO CFexpress 660GB: 660138909696 bytes







      INCLUDED:


      • (1) RED PRO CFEXPRESS
      $299.99
