RED - REDVOLT XL Module Power Pack



DESCRIPTION:



The REDVOLT® XL Module Power Pack includes the REDVOLT XL Module, the REDVOLT XL (2-Pack), and an additional REDVOLT XL battery for optimal power.

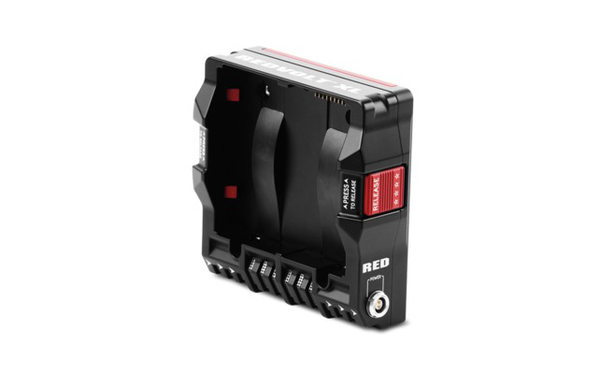

The REDVOLT XL Module is a flexible and robust power solution for your DSMC BRAIN. Engineered with a reversible Switch Plate, the REDVOLT XL Module can be mounted directly to the camera or to another attached module—providing support for long-lasting and rechargeable lithium-ion REDVOLT XL batteries. Batteries can also be hot-swapped, as long as power is provided from a REDVOLT-equipped DSMC Side Handle or an DSMC AC Power Adaptor is connected to the DC IN port on the BRAIN. The on-board 2-pin 0B AUX port provides a convenient 3.8 A power source for additional camera accessories.

The included protective baseplate enables the REDVOLT XL Module to serve as a portable and stand-alone REDVOLT XL battery charger. Plug in the AC Power Adaptor (DSMC) to the 6-pin 1B LEMO CHARGE IN connector on the module and connect a REDVOLT XL battery.

The REDVOLT XL Module fully charges an attached REDVOLT XL in approximately four hours. While the module is mounted to the BRAIN, it will only charge an attached REDVOLT XL battery if the camera BRAIN is powered off.

The REDVOLT XL (2-Pack) combines 2x REDVOLT XL batteries and a protective case – in one package. Laser-cut foam is molded to the precise dimensions of each battery and is encased by a water-resistant protective shell for durable transportation.



FEATURES:


  • Flexible and robust power solution for your DSMC BRAIN
  • Reversible Switch Plate
  • REDVOLT XL Module can serve as a portable and stand-alone REDVOLT XL battery charger
  • Protective case


SPECIFICATIONS:



------REDVOLT XL Module------



Dimensions:

  • Height: 4.29 in. (109 mm)
  • Width: 4.41 in. (112 mm)
  • Depth: 1.52 in. (39 mm)



Weight:

  • Approximately 0.94 lbs (425 g), Module Only



Construction:

  • Aluminum Alloy



Operating Temperature:

  • 0°C to 40°C



Storage Temperature:

  • –20°C bis 50°C



Connectors:

  • CHARGE IN (6-Pin 1B LEMO)
  • AUX POWER OUT (2-Pin 0B LEMO)



Firmware Requirement:

  • DSMC firmware v5.1.29 or later

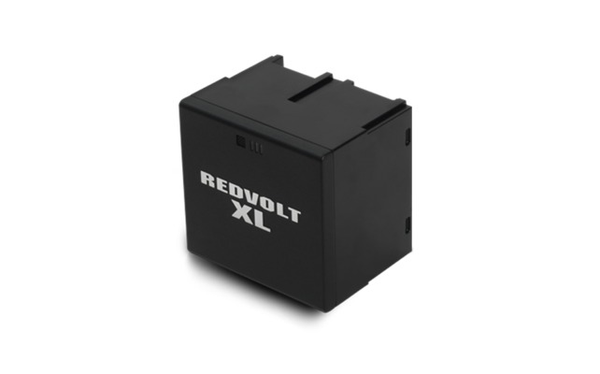

------REDVOLT XL------



Dimensions:

  • Height: 3.22 in. (82 mm)
  • Width: 3.38 in. (86 mm)
  • Depth: 2.55 in. (65 mm)



Weight:

  • Approximately 1.57 lbs (712 g)



Battery Type:

  • Rechargeable Lithium-Ion Battery



Battery Capacity:

  • 89 Wh / 6150 mAh



Output Voltage:

  • 14.4 VDC



Operating Temperature:

  • 0°C to 40°C (32°F to 104°F)



Charging Temperature:

  • 0°C to 45°C (32°F to 113°F)



Storage Temperature:

  • –20°C to 20°C (–4°F to 68°F)



Charger Compatibility:

  • REDVOLT Charger (Quad), REDVOLT XL Module






INCLUDED:


  • (1) REDVOLT XL Module
  • (1) REDVOLT XL
  • (1) REDVOLT XL (2-Pack)
$2,175.00
