FEATURES:

• Double tested on RED KOMODO to ensure quality and functionality
• Free Shipping on all orders over $99

• Backed by a 3 year limited warranty

SPECIFICATIONS:

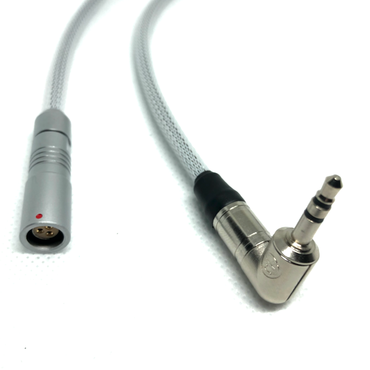

KOMODO EXT to 3.5mm Tentacle Sync® IN Cable

Use this cable to send timecode from a Tentacle Sync device into the RED Komodo. Be sure to select "External TC Source" in the timecode sections on your Komodo.

• Length: 6" or 12"
• Connectivity: LEMO to 3.5mm

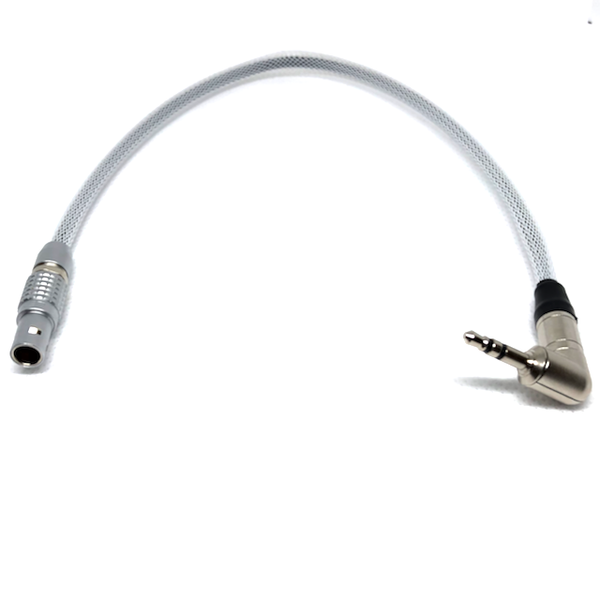

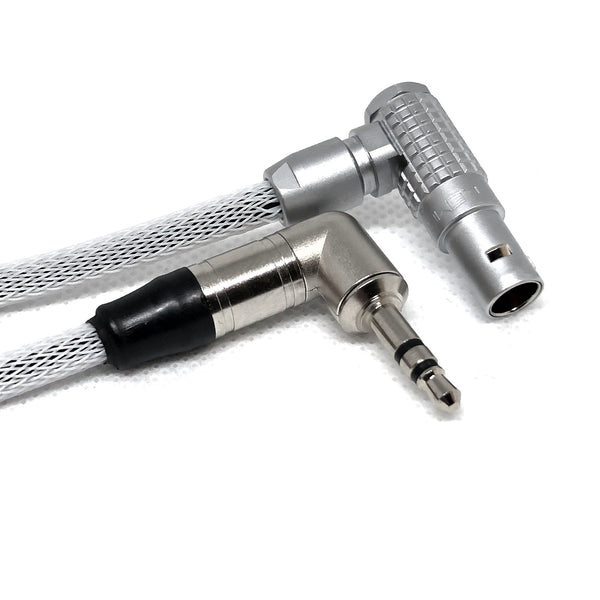

Right Angle KOMODO EXT to 3.5mm Tentacle Sync® IN

Use this cable to send timecode from a Tentacle Sync device into the RED Komodo. Be sure to select "External TC Source" in the timecode sections on your Komodo.

• Length: 12"
• C0nnectivity: Right Angle LEMO to 3.5mm

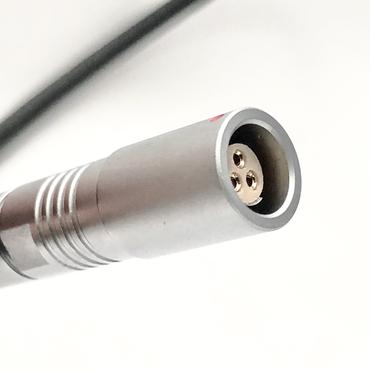

KOMODO EXT to Run/Stop 3 pin

Use this cable to convert your 9 pin EXT port into a 3 pin Fischer-compatible Run/Stop input.

Note, to protect your Komodo, and because the Komodo doesn't provide power output, the second pin is not connected. In other words, this cable is unable to provide power to lens motors or the Tilta Nucleus M, only GPI trigger functionality.

• Length: 12"
• Connectivity: 9 Pin to 3 Pin

KOMODO EXT to TC 3.5mm + Run/Stop 3 pin

Use this cable to take timecode in via 3.5mm, with the added flexibility of a Run/Stop 3 pin input.

• Length: 12"
• Connectivity: 3.5mm to 3 Pin

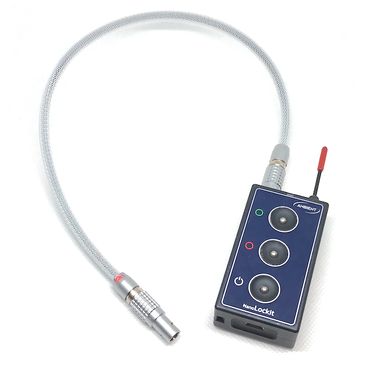

KOMODO EXT to Timecode 5 Pin NanoLockit

This cable connects the Komodo to an Ambient NanoLockit or similar timecode device with a 5 pin LEMO® output.

• Length: 12"
• Connectivity: KOMODO EXT to 5 Pin

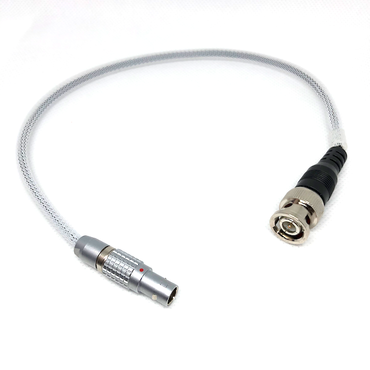

KOMODO EXT to BNC Timecode IN Cable

Use this cable to send timecode from a BNC device such as a Zoom® F8 or a Sound Devices® MixPre 10T into the RED Komodo. Be sure to select "External TC Source" in the timecode sections on your Komodo.

• Length: 12"
• Connectivity: KOMODO EXT to BNC TimeCode

INCLUDED:

• (1) StormCable based on your selection
