Videon - Greylock HD H.264 Encoder/Decoder (HD SDI/HDMI)

DESCRIPTION:

The best value.
You don’t have to pay exorbitant prices to get a professional-grade product. Supporting resolutions up to 1080p60, this encoder/decoder gives you high definition H.264 video encode with the added bonus of built-in decode capability. Better yet, it’s easy to use, with a web UI and straightforward setup process. Greylock brings affordable encoding to AV over IP workflows without sacrificing quality.

Built on trusted silicon.
Videon has unique partnerships that give you access to the best silicon technology. Usually reserved for only the biggest consumer electronics OEMs, the Intel® Atom™ CE5300 is a high-quality Dual Core 1.2GHz media processor. With Intel, you know you’re getting a quality product.

Across a range of AV markets.
Intel silicon gives Greylock low power, small form factor, and high reliability. Designed specifically for applications where affordability is important, Greylock fits into a variety of AV workflows. And if it isn’t a perfect fit for your needs, consider working with Videon’s engineers to customize a solution. With modifiable features and IO, this encoder/decoder can be tailored to simply move your media from any source to any screen.

FEATURES:

Easily stream AV over IP for houses of worship, live events, sports and education.
Flexible data paths move content from any source to any screen.
Based on Intel® Atom™ CE5300 media processor.

SPECIFICATIONS:

Video Encoding/Decoding

Processor: Dual Core 1.2GHz Intel® Atom™
Input Resolutions: 1080i60, i59.94, i50, p60 conv. to p30, p59.94 conv. to p29.97, p30, p29.97, p25; 720p60, p59.94, p50
Output Resolutions: 1080i60, i59.94, i50, p60, p59.94, p50, p30, p29.97, p24, p23.98; 720p60, p59.94, p50; 576i50, p50; 480i59.94, p59.94
Compression: H.264, Baseline, Main, High
Bit rates: 250kbps-20Mbps; Rate control: VBR, CBR
Transcode: Transcode (e.g. 1080p60 input to 720p60 scaled output); limit 30 frames per second

Video Encoding/Decoding

Encode: MPEG-4 AAC-LC in ADTS 64-320kbps
Decode: MPEG1- Layer 2, MPEG-2/MPEG-4 AAC in ADTS/LOAS
Encode Latency: ~1sec; Decode latency ~250ms

Audio Encoding

Encode: Encode: MPEG-4 AAC-LC in ADTS 64-320kbps; Decode: MPEG1- Layer 2, MPEG-2/MPEG-4 AAC in ADTS/LOAS
Encode Sampling Freq: 32, 44.1, 48KHz; Decode: 48 KHz

Streaming Capabilities

Unicast and Multicast: RTP over UDP, Raw UDP
Up to 2x Unicast and 1x Multicast simultaneous channel output
RTMP: Wowza™, UStream, YouTube Live, EvoStream, DaCast

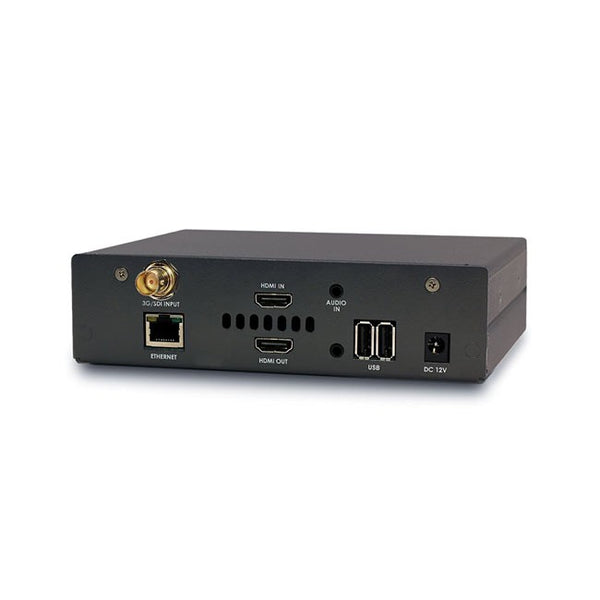

I/O

Video: HDMI v1.4a input and output
3G/HD/SD-SDI input
2 USB 2.0 connectors
Audio embedded in HDMI and 3G/HD/SD-SDI
3.5mm Analog Audio input
10/100/1000 Ethernet (RJ-45)

Network and Control

REST API integrates with third-party controllers and applications
Full-featured web browser based UI designed for tablets and desktops
Encoder configuration for unicast, multicast, and RTMP
DHCP (Default) / Static IP Address
Command and Control: HTTP
Auto-detect and discover other Videon encoder and decoder units on your network, including Greylock HD H.264 Encoder/Decoders, Washington HD H.264 Decoder, Empire HD H.264 Encoder, and other Greylock units.

General

+12V Input; under 15 Watts total (not including external peripheral)
Dimensions: 1.75” x 6.54” x 6.2”
Action Button to start/stop RTMP encoding and for Factory Reset

Applications

IP Encoder for Streaming Events / Houses of Worship
Lecture Capture Encoders
Digital Signage Appliance

Customer Care Promise

Videon has outstanding products, but we’re about more than technology. Our Customer Care team promises:

Connection with a dedicated account representative
Quick turnaround for technical support inquiries
Operational excellence to ensure that customer service is our best product

INCLUDED:

(1) Videon - Greylock HD H.264 Encoder/Decoder (HD SDI/HDMI)
