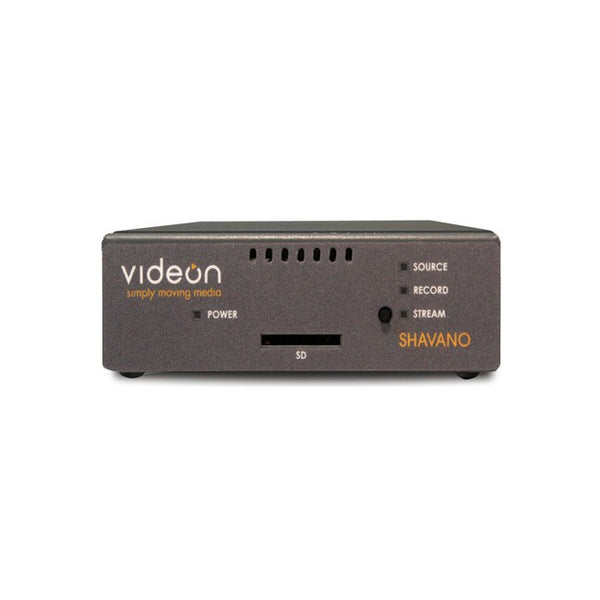

Videon - Shavano 4K HEVC / H.264 Video Encoder

DESCRIPTION:

A true first.
Bringing together 4K resolution and HEVC compression, this encoder lets you have the video quality you need while saving bandwidth. Unlike existing 4K encoders, Videon’s Shavano 4K HEVC encoder offers a small form factor and affordable price point. Better yet, it’s easy to use. One button streaming, a simple web user interface for configuration, and a supportive Customer Care team make it simple to use, whether you’re streaming for the first time or integrating into an existing workflow.

Leading your transition to UHD.
Even if you’ve not streaming in 4K yet, you know it’s coming. With full-featured support for high definition and even standard definition video, the Shavano 4K HEVC encoder can fit into your current setup and futureproof you for when the 4K need hits. With HEVC compression technology, you’ll be saving bandwidth no matter the resolution you’re using.

Across a range of AV markets.
Videon has unique partnerships that let vertical markets and individual consumers access hardware that’s usually only available to the biggest consumer electronics OEMs. Built on the Qualcomm Snapdragon 820 dedicated media processor, this encoder uses the same technology that is in millions of cell phones and set-top boxes. That’s how we manage to keep it small, light and affordable--while guaranteeing quality.

FEATURES:

First small form factor, affordable, real time UHD encoder.
Based on Qualcomm Snapdragon 820, dedicated quad core AV processor.
4K video resolution ideal for applications that require high video quality: sports, broadcast, medical, live events.
Reduce bandwidth consumption with efficient, high-quality HEVC compression technology.

SPECIFICATIONS:

Video Encoding

Processor: Quad Core Qualcomm Snapdragon 820 (APQ8096)
Input Resolutions: 3840x2160p30, p25, p24; 1080i60, i59.94, i50, p60, p59.94, p30, p29.97, p25; 720p60, p59.94, p50
Output Resolutions: 3840x2160p60, p30, p25, p24, 1080i60, i59.94, i50, p60, p59.94, p50, p30, p29.97, p24, p23.98; 720p60, p59.94, p50; 576i50, p50; 480i59.94, p59.94
Compression: H.265/HEVC (up to 4Kp30), H.264
Bit rates: 5Mbps-30Mbps; Rate control: VBR, CBR
Transcode/transrate: H.264 to H.265, H.265 to H.264, 4K to 1080P (more options available)

Audio Encoding

Encode: MPEG-4 AAC-LC in ADTS 64-320kbps
Encode Sampling Freq: 32, 44.1, 48KHz

Streaming Capabilities

Unicast and Multicast: RTP over UDP, Raw UDP
Up to 2x Unicast and 1x Multicast simultaneous channel output
RTMP
RTSP

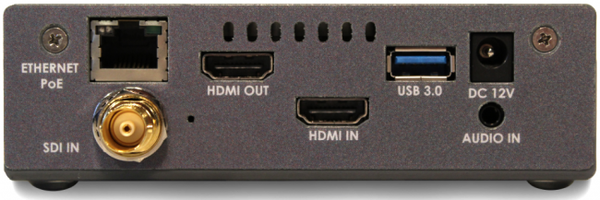

I/O

HDMI 1.4 input up to 2160p30
HDMI 2.0 output up to 2160p60
3G-SDI input up to 1080p60
USB 2.0 and 3.0 interface
Audio embedded in HDMI and 3G-SDI and 3.5mm Analog Audio input
10/100/1000 Ethernet (RJ-45)

Network and Control

REST API integrates with third-party controllers and applications
Full-featured web browser based UI designed for tablets and desktops
Encoder configuration for unicast, multicast, RTMP and RTSP
DHCP (Default) / Static IP Address
Command and Control: HTTP
Auto-detect and discover other Videon encoder and decoder units on your network, including Greylock HD H.264 Encoder/Decoders, Washington HD H.264 Decoder, and other Shavano 4K UHD units.

General

+12V Input; under 15 Watts total (not including external peripheral)
Dimensions: 5” x 4” x 1.75”
Action Button to start/stop RTMP encoding and for Factory Reset

Applications

IP Encoder for Streaming Events
Point to Point or RTMP/RTSP Encode for Broadcasters
RTMP/RTSP Encode for Education, Sports, and Houses of Worship

Customer Care Promise

Videon has outstanding products, but we’re about more than technology. Our Customer Care team promises:

Connection with a dedicated account representative
Quick turnaround for technical support inquiries
Operational excellence to ensure that customer service is our best product

INCLUDED:

(1) Videon - Shavano 4K HEVC Encoder
