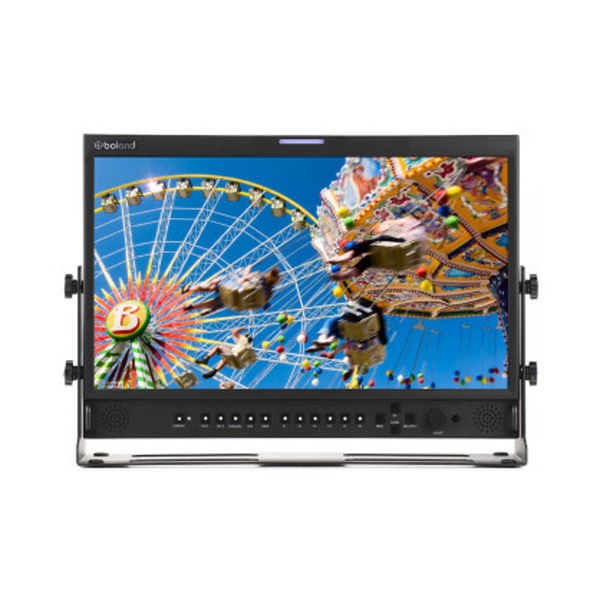

FEATURES:



17” 3G HD & SD SDI, HD HDMI/DVI (+HDCP)


  • High & Standard Definition Video LCD Monitors 1080/720/576/480
  • 3G includes 2x3G HD/SD SDI-Digital input/ HD HDMI/DVI (+HDCP)
  • Dual Link Mode & 1080p 60 compatible
  • HDMI/DVI inputs accepts up to 1080p HD
  • Modes: EGA to UXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
  • Analog Inputs are Composite, Y/C, Component, RGB (SOG), DVI – I (Analog PC)
  • Aspect Ratio: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1:
  • Dual Waveform & Vector Scope (SDI Only).
  • Safe Area Adjustable Frame Marker Display
  • Audio Level Meter (16ch, Level meter position, Level meter scale)
  • Supports 10bits 3D LUT (Native, BT.709, SMPTE-C, EBU, NTSC, D-Cinema)
  • 4:4:4
  • UMD/IMD Support.
  • Closed caption. (CEA608 & 708, SDI Only)
  • Color Temperature – User, VAR, 11000K, 9300K, 6500K, 5400K, 3200K


SPECIFICATIONS:



Active Area (Diagonal):

  • 17”

MODES:

  • High & Standard Definition Video Modes:
    • 2048x1080p(24/25)
    • 1920x1080p(50/60/30psf/25psf/24psf/30/25/24)
    • 1920x1035i(60/59.94)
    • 1920x1080i(50/59.94/60)
    • 1280x720p(24/25/30/50/59.94/60)
    • 480i(59.94)
    • 576i(50) Digital
    • VESA VGA
    • DVI/HDMI
  • PC Video Modes:
    • EGA
    • VGA
    • SVGA
    • XGA
    • WXGA
    • SXGA
    • WSXGA
    • UXGA
  • Standard Definition Video Modes:
    • NTSC
    • PAL
    • SECAM
    • NTSC4.43
    • PAL-M
  • Scanning Modes:
    • Under
    • Over
    • Zero
    • Pixel to Pixel Scanning



INPUTS:

  • Digital Video Inputs:
    • 3G HD SDI (SMPTE 259M/292/296)
    • HD HDMI/DVI (+HDCP)
  • Digital Video Inputs:
    • Digital Visual Interface
    • Dual Link
    • VESA & SMPTE Rates
  • Analog Video Inputs:
    • Composite
    • Y/C
    • Component
    • RGB (SOG)
    • DVI – I (Analog PC)



PICTURE:

  • Aspect Ratios:
    • Full Screen
    • 16:9
    • 4:3
    • 14:9
    • 13:9
    • 1.85:1
    • 2.35:1
  • Picture-in-Picture:
    • Analog (Composite1, 2, 3, YPbPr, GBR, PC) inputs + Digital (DVI, HDMI) + SDI (SDI1, SDI2) inputs & SDI1 + SDI2 input PIP
  • Pixel (RGB Trio) Arrangement:
    • 1920 H x 1080 V Pixels RGB strip arrangement (2,073,600 Pixels, 16:9)
  • Pixel (RGB Trio) Pitch, Depth:
    • 0.199mm × 0.199 mm 1.07 Billion colors (10-bit)
  • Brightness, typical:
    • 450 cd/m2
  • Contrast Ratio:
    • 1500:1
  • Color Processor:
    • 10 bit color Processor
  • Viewing Angle:
    • R/L 178(Typ.)
    • U/D 178(Typ.)
  • Response Time:
    • 10ms



CONTROLS:

  • User Controls:
    • ST-BY
    • SDI1~2
    • ANALOG
    • SCAN
    • MARKER
    • F1 ~6
    • MENU
    • SEL/INPUT
    • UP
    • DOWN
    • ADJUST
  • Remote Controls:
    • IR
    • TCP/IP



BACKLIGHT:

  • Light Source (standard):
    • RGB LED backlight system
  • LED Life:
    • 30,000 hrs



CONNECTORS:

  • Video Connectors:
    • BNC x 2 SDI 2 Channel Input
    • BNC x 3 Composite
    • YC (S-Video)
    • Component (YPbPr/RGB) Input
    • Dual Link
  • HDMI/DVI Connectors:
    • DVI-I x 1 DVI & Analog RGB Input
    • HDMI x 1 HDMI Input
  • AUDIO Connectors:
    • RAC x 2 Audio Input



POWER:

  • DC Power:
    • 12 VDC ±10%
    • 40 watts
  • DC Connector:
    • XLR-4M (pin 1=Gnd
    • pin 4=+volts)
  • AC Power (detached power supply included):
    • 90-264 VAC, 50/60 Hz
  • AC Power Connector:
    • IEC 320-C14 3 pin Male



DISPLAY:

  • Window (Display Area):
    • 14.48 x 8.181”
  • Cabinet Dimensions:
    • 16.141 x 11.417 x 2.894”
  • Weight:
    • 7.8 lbs (without stand or rackmount)
  • Mounting / Rack Mounting:
    • VESA (100 x 100/75 x 75/65 x 44)
    • Rackmount 7 RU
  • Operating (full spec):
    • 0 ~ +50°C, no condensation
    • 0 ~ 10,000 feet (3,048m)
  • Storage:
    • -20 ~ +60°C, no condensation
    • 0 ~ 40,000 feet (12,192m)
  • Available Options:
    • Rackmount; Stand Included



Specification Sheet



$2,895.00
