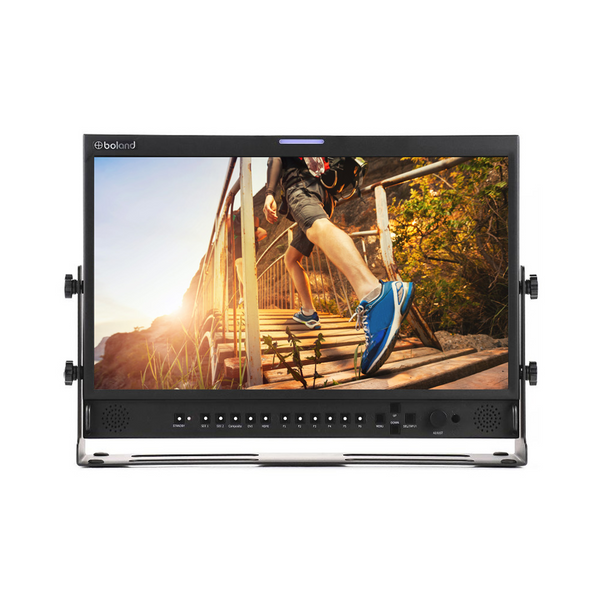

Boland - BVB17DB

SPECIFICATIONS:

Active Area (Diagonal):

• 17”

MODES:

• High & Standard Definition Video Modes:
  • 2048x1080p(24/25)
  • 1920x1080p(50/60/30psf/25psf/24psf/30/25/24)
  • 1920x1035i(60/59.94)
  • 1920x1080i(50/59.94/60)
  • 1280x720p(24/25/30/50/59.94/60)
  • 480i(59.94)
  • 576i(50) Digital
  • VESA VGA
  • DVI/HDMI
• PC Video Modes:
  • EGA
  • VGA
  • SVGA
  • XGA
  • WXGA
  • SXGA
  • WSXGA
  • UXGA
• Standard Definition Video Modes:
  • NTSC
  • PAL
  • SECAM
  • NTSC4.43
  • PAL-M
• Scanning Modes:
  • Under
  • Over
  • Zero
  • Pixel to Pixel Scanning

INPUTS:

• Digital Video Inputs:
  • 3G HD SDI (SMPTE 259M/292/296)
  • HD HDMI/DVI (+HDCP)
• Digital Video Inputs:
  • Digital Visual Interface
  • Dual Link
  • VESA & SMPTE Rates
• Analog Video Inputs:
  • Composite
  • Component
  • RGB (SOG)
  • DVI – I (Analog PC)

PICTURE:

• Aspect Ratios:
  • Full Screen
  • 16:9
  • 4:3
  • 14:9
  • 13:9
  • 1.85:1
  • 2.35:1
• Picture-in-Picture:
  • Analog (Composite 1, 2, 3, YPbPr, GBR, PC) inputs + Digital (DVI, HDMI) + SDI (SDI1, SDI2) inputs & SDI1 + SDI2 input PIP
• Picture-by-Picture:
  • Side by Side split screen display
• Pixel (RGB Trio) Arrangement:
  • 1920 H x 1200 V Pixels RGB strip arrangement
• Pixel (RGB Trio) Pitch, Depth:
  • 0.1905mm × 0.1905 mm. 107 Billion colors (10-bit)
• Brightness, typical:
  • 1000 cd/m2
• Contrast Ratio:
  • 1200:1
• Color Processor:
  • 10 bit color Processor
• Viewing Angle:
  • R/L 178(Typ.)
  • U/D 178(Typ.)
• Response Time:
  • 14ms

CONTROLS:

• User Controls:
  • ST-BY
  • SDI1~2
  • ANALOG
  • SCAN
  • MARKER
  • F1 ~6
  • MENU
  • SEL/INPUT
  • UP
  • DOWN
  • ADJUST
• Remote Controls:
  • IR
  • TCP/IP

BACKLIGHT:

• Light Source (standard):
  • RGB LED backlight system
• LED Life:
  • 30,000 hrs

CONNECTORS:

• Video Connectors:
  • BNC x 2 SDI 2 Channel Input
  • BNC x 3 Composite
  • YC (S-Video)
  • Component (YPbPr/RGB) Input
  • Dual Link
• HDMI/DVI Connectors:
  • DVI-I x 1 DVI & Analog RGB Input
  • HDMI x 1 HDMI Input
• AUDIO Connectors:
  • RAC x 2 Audio Input

POWER:

• DC Power:
  • 12 VDC ±10%
  • 40 watts
• DC Connector:
  • XLR-4M (pin 1=Gnd, pin 4=+volts)
• AC Power (detached power supply included):
  • 90-264 VAC, 50/60 Hz
• AC Power Connector:
  • IEC 320-C14 3 pin Male

DISPLAY:

• Window (Display Area):
  • 14.464”x 9.063”
• Cabinet Dimensions:
  • 16.142”x11.654”x 1.81” / 3.307”
• Weight:
  • 12lbs.
• Mounting / Rack Mounting:
  • VESA (100 x 100/75 x 75/65 x 44)
  • Rackmount 7 RU
• Operating (full spec):
  • 0 ~ +50°C, no condensation
  • 0 ~ 10,000 feet (3,048m)
• Storage:
  • -20 ~ +60°C, no condensation
  • 0 ~ 40,000 feet (12,192m)
• Available Options:
  • Rackmount; Stand Included
