RED - REDVOLT XL Module



DESCRIPTION:

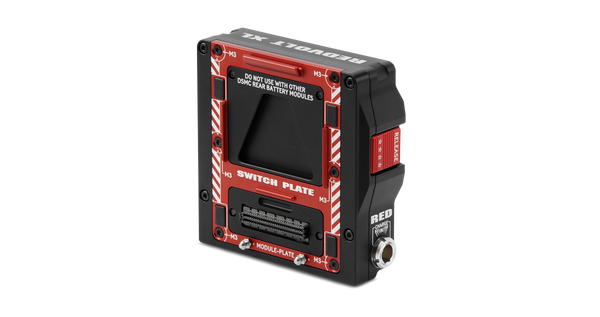

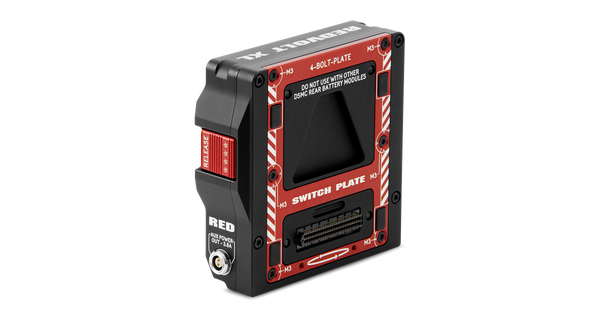

The REDVOLT® XL Module is a flexible and robust power solution for your DSMC® BRAIN®. Engineered with a reversible Switch Plate, the REDVOLT XL Module can be mounted directly to the camera or to another attached module—providing support for long-lasting and rechargeable lithium-ion REDVOLT XL batteries. Batteries can also be hot-swapped, as long as power is provided from a REDVOLT-equipped DSMC Side Handle or an DSMC AC Power Adaptor is connected to the DC IN port on the BRAIN. The on-board 2-pin 0B AUX port provides a convenient 3.8 A power source for additional camera accessories.

The included protective baseplate enables the REDVOLT XL Module to serve as a portable and stand-alone REDVOLT XL battery charger. Plug in the DSMC AC Power Adaptor to the 6-pin 1B LEMO CHARGE IN connector on the module and connect a REDVOLT XL battery. The REDVOLT XL Module fully charges an attached REDVOLT XL in approximately four hours. While the module is mounted to the BRAIN, it will only charge an attached REDVOLT XL battery if the camera BRAIN is powered off.



FEATURES:


  • Flexible and robust power solution
  • Reversible Switch Plate
  • Fully charges an attached REDVOLT XL in approximately four hours


SPECIFICATIONS:



Dimensions:

  • Height: 4.29 in. (109 mm)
  • Width: 4.41 in. (112 mm)
  • Depth: 1.52 in. (39 mm)



Weight:

  • Approximately 0.94 lbs (425 g), Module Only



Construction:

  • Aluminum Alloy



Operating Temperature:

  • 0°C to 40°C (32°F to 104°F)



Storage Temperature:

  • –20°C to 50°C (–4°F to 122°F)



Connectors:

  • CHARGE IN (6-Pin 1B LEMO)
  • AUX POWER OUT (2-Pin 0B LEMO)



Firmware Requirement:

  • DSMC firmware v5.1.29 or later






INCLUDED:


  • (1) REDVOLT XL Module
$1,150.00
