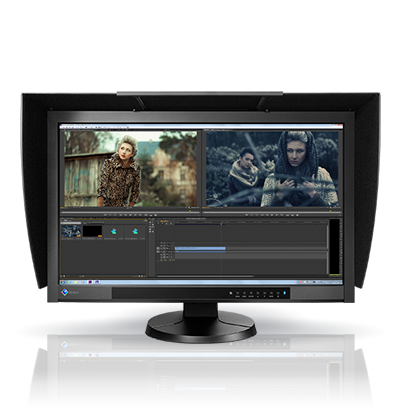

Eizo - CG277 27" (68 cm) Hardware Calibration LCD Monitor

Next Product



DESCRIPTION:



COLOR ACCURACY AND CONVENIENCE TO MAKE THE MOST OF YOUR CREATIVITY.



With 99% Adobe RGB color space coverage, 10-bit simultaneous display, hardware calibration, this self-calibrating monitor is built to deliver optimal performance to professionals in printing, photography, and post production.



FEATURES:


  • Color Mode (Custom, Adobe RGB, sRGB, Rec709, EBU, SMPTE-C, DCI, Calibration)
  • Brightness Stabilization
  • Digital Uniformity Equalizer
  • OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese


SPECIFICATIONS:



Panel:

  • Type:
    • IPS
  • Backlight:
    • Wide-Gamut LED
  • Size:
    • 27" / 68 cm (684 mm diagonal)
  • Native resolution:
    • 2560 x 1440 (16:9 aspect ratio)
  • Viewable image size (H x V):
    • 596.7 x 335.6 mm
  • Pixel pitch:
    • 0.2331 x 0.2331 mm
  • Pixel density:
    • 109ppi
  • Grayscale tones:
    • DisplayPort, HDMI: 1024 tones (a palette of 65281 tones), DVI: 256 tones (a palette of 65281 tones)
  • Display colors:
    • DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion DVI: 16.77 million from a palette of 278 trillion
  • Viewing angles (H / V, typical):
    • 178°, 178°
  • Brightness (typical):
    • 300 cd/m²
  • Recommended brightness for calibration:
    • 120 cd/m² or less
  • Contrast ratio (typical):
    • 1000:1
  • Response time (typical):
    • 6 ms (Gray-to-gray)
  • Wide gamut coverage (typical):
    • Adobe RGB: 99%, DCI-P3:93%



Video signals:

  • Input terminals:
    • DVI-D 24 pin, DisplayPort (with HDCP), HDMI (with HDCP, Deep Color)
  • Digital scanning frequency (H / V):
    • DisplayPort, DVI: 26 - 89 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz), HDMI: 15 - 78 kHz, 23.75 - 61 Hz



USB:

  • Function:
    • 2 ports for monitor control, 2-port USB hub
  • Standard:
    • USB 2.0



Power:

  • Power requirements:
    • AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
  • Maximum power consumption:
    • 99 W
  • Typical power consumption:
    • 43 W
  • Power save mode:
    • Less than 0.7 W
  • Standby mode:
    • Less than 0.5 W
  • Power management:
    • Power Save (DisplayPort: Rev. 1.1a, DVI: DVI DMPM)



Self-calibration:

  • Yes



Physical specifications:

  • Dimensions (Landscape, W x H x D):
    • 646 x 425 - 576.5 x 281.5 mm (landscape) 402 x 671 - 704 x 281.5 mm (portrait)
  • Dimensions (Without stand, W x H x D):
    • 646 x 402 x 92 mm
  • Net weight:
    • 12.8 kg / 28 lbs
  • Net weight (Without stand):
    • 8.8 kg / 19.4 lbs
  • Net weight (With hood):
    • 13.8 kg / 30.4 lbs
  • Height adjustment range:
    • 151.5 mm
  • Tilt:
    • 25° Up, 0° Down
  • Swivel:
    • 344°
  • Pivot:
    • 90°
  • Hole spacing (VESA standard):
    • 100 x 100 mm



Specification Sheet


INCLUDED:


  • AC power cord
  • Signal cables (DVI-D - DVI-D [dual link supported]
  • Mini DisplayPort - DisplayPort)
  • USB cable
  • Setup guide
  • EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual)
  • Adjustment certificate
  • ScreenCleaner
  • Monitor hood
  • Quick reference
  • Warranty card
$2,426.00
