RED - DSMC3 RED TOUCH 7"

Previous Product | Next Product





DESCRIPTION:



The DSMC3 RED® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR™ camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P31 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom & more.

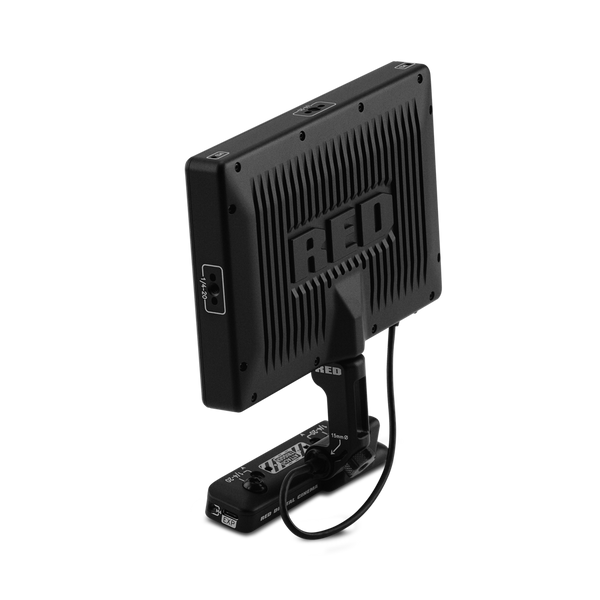

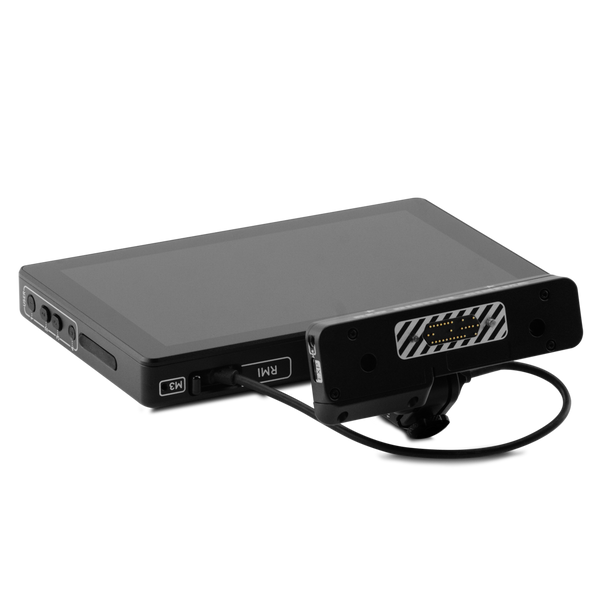

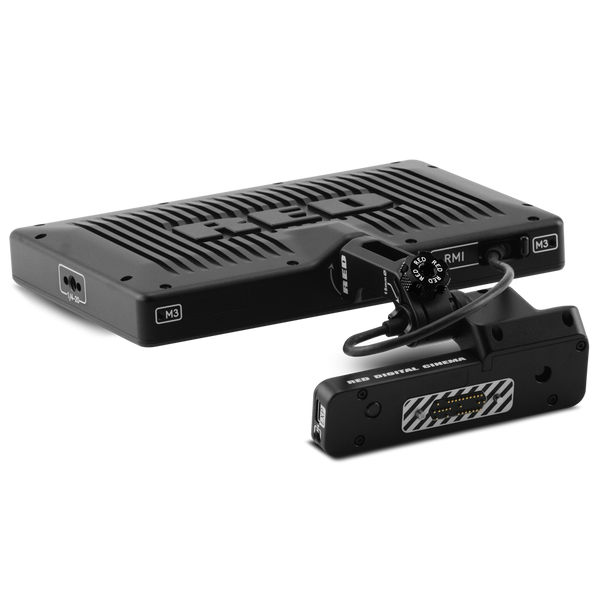

The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.



For issues or troubleshooting, please visit smallhd.com/pages/contact-us.



COMPATIBILITY: The DSMC3 RED Touch 7.0" LCD is not compatible with DSMC®, DSMC2®, RED RANGER® or KOMODO® camera systems.​



1. Requires DCI-P3 calibration LUT. Contact SmallHD support to request.





    FEATURES:



    • 1920 x 1200 resolution display
    • 1300 nit Brightness
    • Rotates 180 degrees
    • Removable integrated swing arm
    • Touch screen control
    • Lightweight





        SPECIFICATIONS:



        Monitor Dimensions:

        • Height: 4.67 in. (118.70 mm)
        • Width: 7.09 in. (180.10 mm)
        • Depth: 1.13 in. (28.80 mm)



        Arm Dimensions:

        • Height: 1.18 in. (30.00 mm)
        • Width: 2.40 in. (61.00 mm)
        • Depth: .70 in. (17.50 mm)



        RED Monitor Interface Dimensions:

        • Height: 1.67 in. (42.50 mm)
        • Width: 4.25 in. (108.00 mm)
        • Depth: 1.51 in. (38.23 mm)



        Weight:

        • Monitor approximately 1.25 lbs (568.0 g)
        • Arm approximately .07 lbs (30.1 g)
        • RED Monitor Interface approximately .28 lbs (126 g)



        Material:

        • Aluminum Alloy



        Resolution:

        • 1920 x 1200



        Pixel Density:

        • 322 pixels per inch (ppi)



        Refresh Rate:

        • 60 Hz



        Response Time:

        • 25 ms



        Contrast:

        • 1250:1



        Brightness:

        • 1300 cd/m2



        Color Depth:

        • 10 bit



        Colors:

        • 100% DCI-P3[1]



        Viewing Angle:

        • ± 160° all axes



        Display Orientation:

        • Landscape, 180° rotation



        Touch:

        • Projected Capacitive (pCap), multi-touch



        Camera Connection:

        • Power and Communication via RMI cable



        Mounting:

        • 15mm Rail



        Hood Mounting:

        • 4x M3 Mounting Points



        Buttons:

        • 4 Buttons Function 1,2,3 & 4



        Power Consumption:

        • Max 18.3W



        Operating Temperature:

        • 0°C to 38°C (32°F to 104°F)



        Storage Temperature:

        • –18°C to 49°C (–0°F to 120°F)



        Operating Humidity:

        • 0% to 85%, non-condensing



        Storage Humidity:

        • 0% to 85%, non-condensing



        Firmware Requirement:

        • Compatible with camera firmware V1.1 or later








          INCLUDED:



          • 1x RED Monitor Interface
          • 1x Arm
          • 1x DSMC3 RMI Cable
              $2,750.00
