DESCRIPTION:

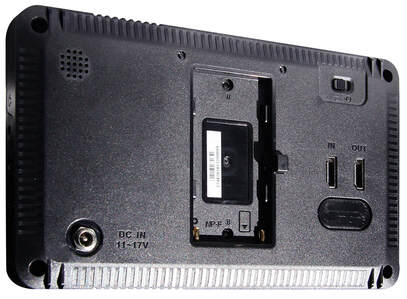

T7 4K ULTRAHD is a high-performance HDMI On Camera Monitor to monitor professional 4K HDMI for outdoor shooting.

The professional screen glass at full resolution of 1920x1200 with 3000nit brightness makes T7 4K ULTRAHD capable of reproducing a natural color and great daylight viewing. In addition, the monitor has excellent assistants functionalities, versatile build-in 3D-LUTs and easy to use.

FEATURES:

Image Scale
Zebra
Anamorphic De-squeeze
Waveform / Vectorscope
Safe Marker / Area Marker /Center Marker
Image Rotate
Cross Hatch
Histogram
Audio Meters
Focus Assist
Peaking
Pixel Zoom
False Color
Aspect Ratio
DSLR Scale
Anamorphic
Pre-loaded LUTs for Cameras
LUT Loaded via SD Card
Calibration Lut
Firmware Upgrading

SPECIFICATIONS:

Connector Type:

HDMI IN: HDMI Type A
HDMI OUT: HDMI Type A, loop out
Audio: 3.5mm Mini Jack
Control: 2.5mm Jack

Display:

Panel Size: 7.0inch
Resolution: 1920×1200
Aspect Ratio: 16:10
Brightness: 3000nits
Contrast: 1200:1
Viewing Angle: 160°X160°

Input Signal Formats:

HDMI:

2160P30/29.97/25/24/23.98
1080P60/59.94/50/30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480P60, 576P50

Environmental:

Operating Temperature: 0°C~50°C
Dimensions(Bare Monitor）: 192.0(mm)
×116.3(mm) ×24.7(mm)
Weight(without Battery): 438g

Power:

Input Voltage: DC IN 11~17VDC
Battery Types: SONY NP-F
Consumption: 16.2W

INCLUDED:

T7 Monitor
Gold Shoe/ 1/4" Bolt Ball Head
D-tap to Lockable Pole DC Cable
AC-DC Power Adaptor
