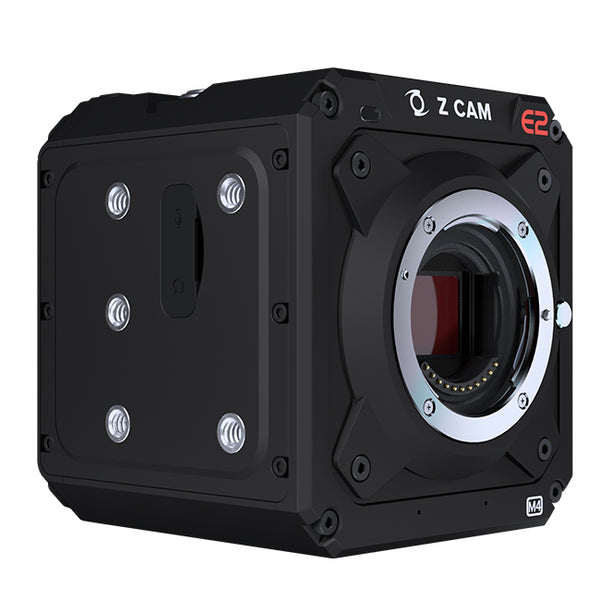

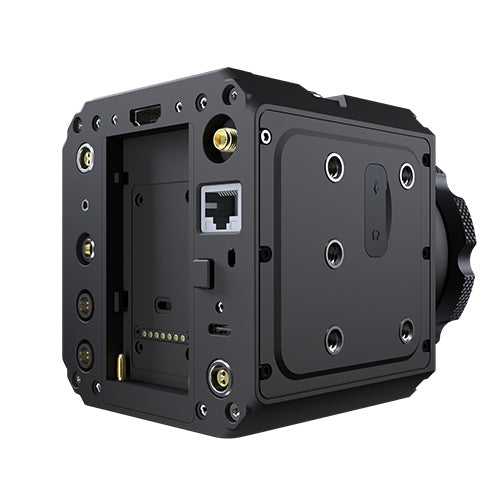

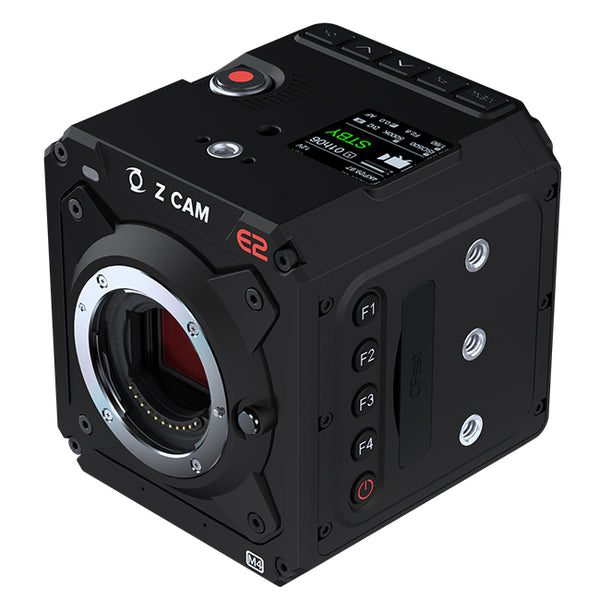

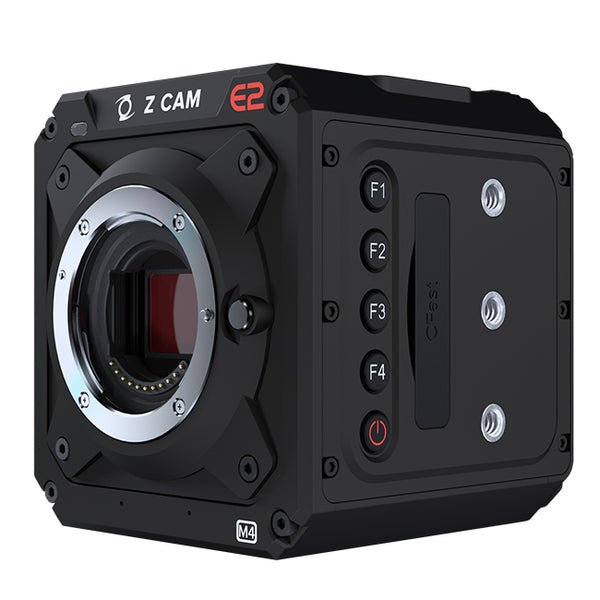

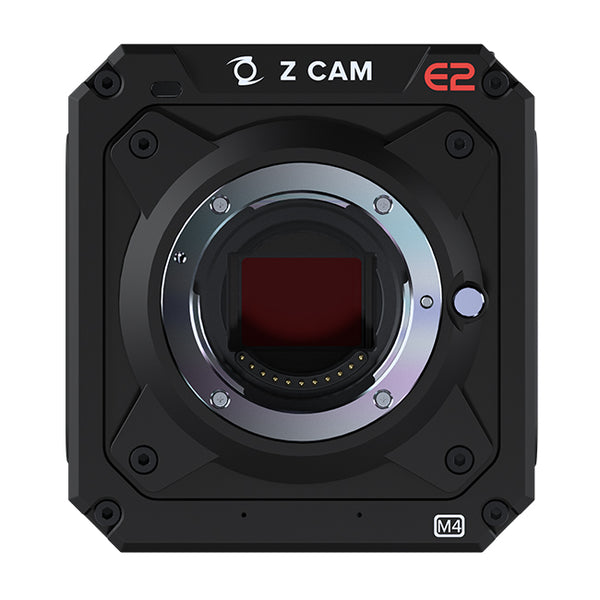

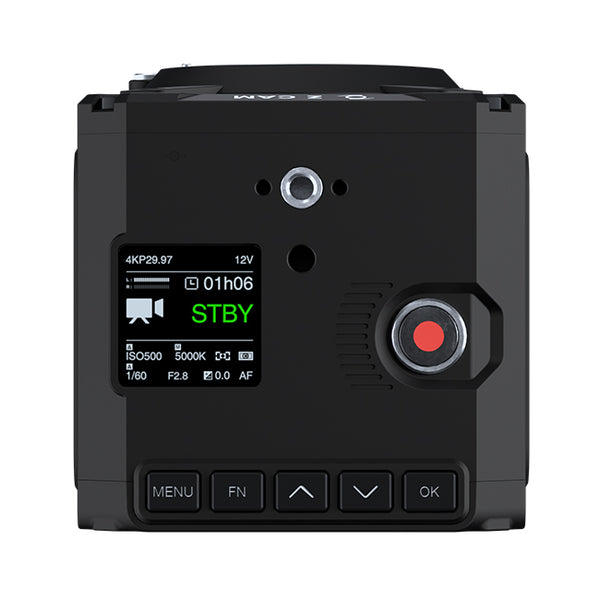

Z CAM - E2-M4 4K Cinema Camera




DESCRIPTION:



Professional 4K Cinematic Camera


THIS ITEM IS CURRENTLY EXPECTED TO SHIP IN MID JULY

Z Cam's E2-M4 is a small but powerful camera at an amazing value. Silent, Capable, Sturdy, and designed to be your perfect companion camera or run-and-gun rig. Ideal for your B-roll or for shots that require a lightweight, compact form-factor camera sitting in a tight space.





FEATURES:


  • 4K @160fps*, 10-bit color
  • 4/3" WDR CMOS sensor
  • 13~15 stops dynamic range (16 stops with WDR enabled)
  • ZRAW (partial debayer)
  • Gigabit Ethernet for data, control & live streaming**


SPECIFICATIONS:



Sensor

  • Size: 19.0 x 13.0 mm
  • Type:  4/3" WDR CMOS
  • Effective Resolution: 10.28 MP
  • Dynamic Range: 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
  • ISO:  160 to 25000 Native, 80 to 12800 Expanded



Camera

  • Lens Mount:  MFT mount (interchangeable)
  • On-Board Mic:  Stereo
  • Recording Media:  1 CFAST  2.0 slot



Recording

  • Resolution: 4096 x 2160 (C4K), 3840 x 2160 (4K), 4096 x 1728 (C4K 2.4:1), 3840 x 1620 (4K 2.4:1), 3696 x 2772, 3312 x 2760, 2704 x 1600, 1920 x 1080
  • Frame Rate: 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
  • Maxx Variable Frame Rate: 120 fps for 4096 x 2160 (H.265 only), 120 fps for 3840 x 2160 (H.265 only), 150 fps for 4096 x 1728 (H.265 only), 160 fps for 3840 x 1620 (H.265 only), 160 fps for 2704 x 1600 (H.265 only), 59.94 fps for 3696 x 2772, 59.94 fps for 3312 x 2760, 240 fps for 1920 x 1080 (H.265 only)
  • Max Bit Rate: H.265 / H.264
    300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
    200 Mbps for 1920 x 1080
  • Color Bit Depth: 10-bit (H.265) & 8-bit (H.264)
  • Video Encoder: ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile
  • Audio Format: 24-bit 48 kHz
  • Audio Encoder: AAC / PCM (for MOV only)
  • Video Format: MOV / MP4
  • Record Mode: Video / Time Lapse Video



Settingd

  • ISO: Auto, Manual (500 ~ 102400 / 250 ~ 51200 with WDR activated), Native ISO: 500 / 2500 (250 / 1250 with WDR activated)
  • Shutter Speed: Auto, Manual (up to 1/8000”)
  • Shutter Angle: Auto, Manual (1° ~ 360°)
  • White Balance: Auto, Preset, Manual (2300K ~ 7500K)
  • Focus Mode: MF / AF / CAF
  • Image: Brightness / Contrast / Saturation / Sharpness
  • Image Profile: Rec.709 / Z-Log2 / FLAT / HLG
  • Audio: Audio In / Out Level
  • Timecode: Current Time / Manual Input / External Input



Storage

  • Media:  CFAST 2.0
  • File System: exFAT



    I/O Connectivity

    • Video Connectors
      • 1 x HDMI (HDMI 2.0) Output



    • Audio Connectors
      • 1 x 1/8" / 3.5 mm Stereo Mic Level Input
      • 1 x 1/8" / 3.5 mm Stereo Output
      • 1 x 5-Pin LEMO Mic Level Input



    • Other
      • DATA: 1 x USB 3.0 Type-C
      • COM: DB-9 connector, supports RS-232
      • Remote Control: 2.5 mm jack socket (Sony LANC compatible)
      • Gigabit Ethernet



    • Wireless
      • 5 GHz Wi-Fi



    Power

    • Battery Type
      • Sony L Series



    • Connectors
      • 1 x 4-Pin LEMO (12 VDC at5 A) Input



    Temperatures

    • Operating
      • 32 to 104°F / 0 to 40°C



    • Storage
      • -4 to 140°F / -20 to 60°C



    Physical

    • Mounts
      • 1/4"-20 Tripod mount
      • 8x 1/4"-20 Accessory mounts



    • Construction
      • Aluminum Alloy



    • Dimensions
      • 91.20mm x 99.25mm x 95.60mm (without lens)



    • Weight
      • 1090g (EF mount) / 1160g (PL mount) / 930g (MFT mount)



    Supported Lenses

    • Panasonic Lumix 14mm f/2.5 G
    • Panasonic Leica DG Summilux 15mm f/1.7 ASPH
    • Panasonic Lumix G Vario 7-14mm f/4 ASPH
    • Panasonic Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S.
    • Panasonic Lumix G 25mm f/1.7 ASPH.
    • Panasonic Lumix G 42.5mm f/1.7 ASPH. POWER O.I.S. Lens
    • Panasonic Lumix G X Vario 12-35mm f/2.8 II ASPH. POWER O.I.S.
    • Panasonic Leica DG Vario-Elmarit 8-18mm f/2.8-4 ASPH.
    • Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH. MEGA O.I.S
    • Lumix G X Vario 14-42mm f/3.5-5.6 Power O.I.S.
    • Sigma 19mm F2.8 DN Art
    • Olympus M.Zuiko Digital ED 8mm f/1.8 Fisheye PRO
    • Olympus M.Zuiko Digital ED 12mm f/2
    • Olympus M.Zuiko Digital ED 17mm f/1.2 PRO
    • Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO
    • Olympus M.Zuiko Digital ED 45mm f/1.2 PRO
    • Olympus M.Zuiko Digital ED 75mm f/1.8 Lens
    • Olympus M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ
    • Olympus M.Zuiko Digital ED 25mm f/1.2 PRO
    • Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
    • Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
    • Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
    • Olympus M.Zuiko Digital ED 30mm f/3.5 Macro
    • Olympus M.Zuiko Digital ED 40-150mm f/2.8 PRO
    • Olympus M.Zuiko Digital ED 7-14mm f/2.8 PRO
    • Olympus M.Zuiko Digital ED 12-100mm f/4 IS PRO
    • Olympus M.Zuiko Digital ED 300mm f/4 IS PRO



    Package Weight

    • 5 lbs







      INCLUDED:


      • Z CAM™ E2-M4 Camera Unit
      • LEMO Power Cable
      • Quick User Guide
      • Warranty Card
      $1,499.00
