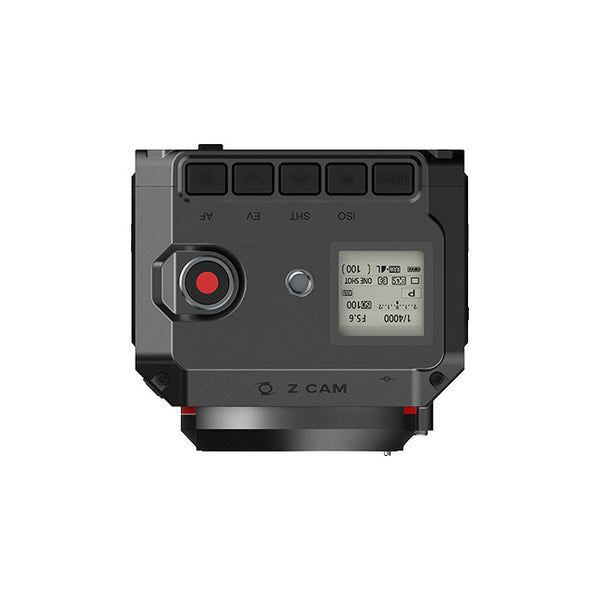

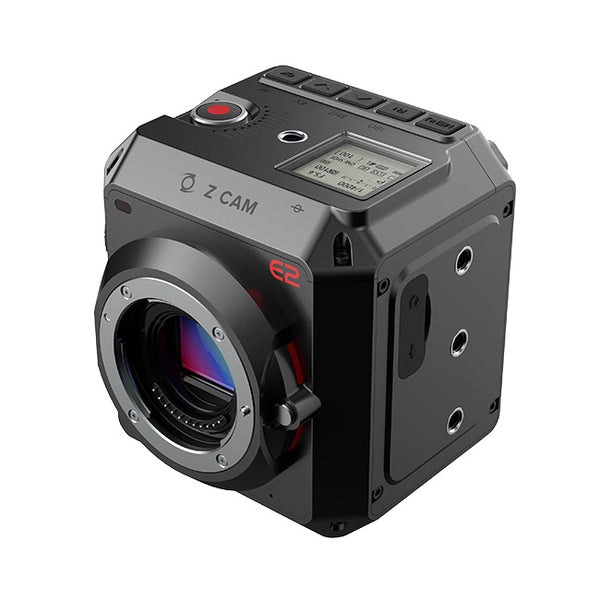

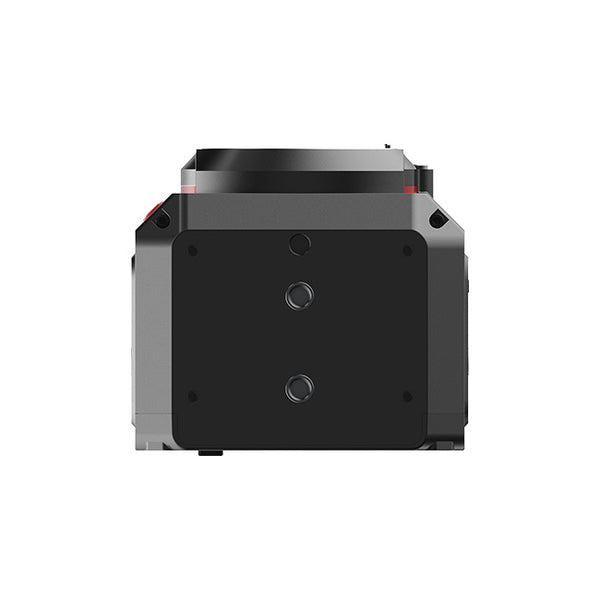

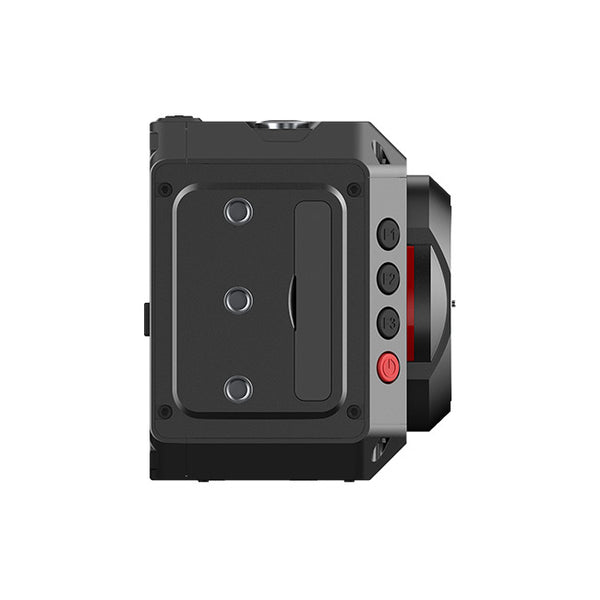

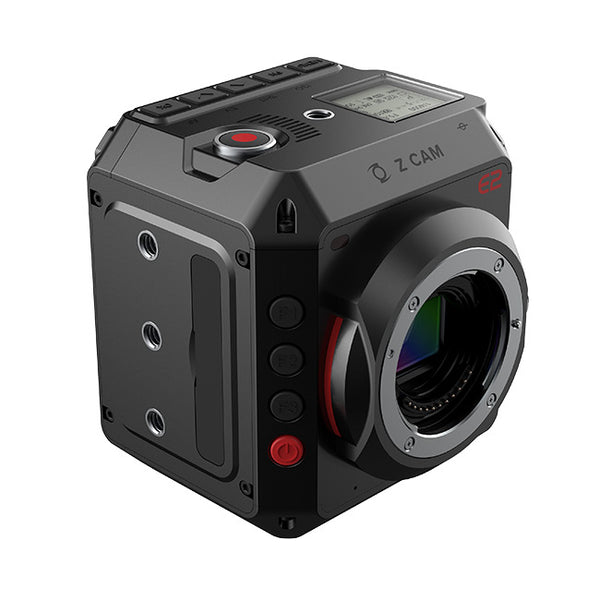

Z CAM - E2

FEATURES:

• DCI and UHD 4K up to 120 fps
• 13-Stop Dynamic Range (16 WDR Enabled)
• 10-Bit Color Recording, Supports ProRes
• 4/3" WDR CMOS Sensor
• Multicamera Synchronization
• Gigabit Ethernet for Data, Control
• Live Streaming via Ethernet
• iOS App for Control & Live Preview
• Accepts Optional L-Series Batteries
• AC Power Adapter Included

SPECIFICATIONS:

Sensor

• Size: 17.3 x 13 mm (4/3")
• Type:  CMOS
• Effective Resolution: 10.28 MP
• ISO:  160 to 25000 Native, 80 to 12800 Expanded

Camera

• Lens Mount:  Micro Four Thirds
• On-Board Mic:  Stereo
• Recording Media:  1 CFAST  2.0 slot

Internal Recording modes

• ProRes 422HQ 4:2:2 10-Bit:
• 4096 x 2160p up to 30 fps
• 3840 x 2160p up to 30 fps
• 3696 x 2772 up to 30 fps
• 1920 x 1080 up to 100 fps

• ProRes 422 4:2:2 10-Bit:
• 4096 x 2160p up to 48 fps

• 3840 x 2160p up to 60 fps

• 3696 x 2772 up to 48 fps

• 1920 x 1080 up to 120 fps

• ProRes 422LT 4:2:2 10-Bit:
• 4096 x 2160p up to 60 fps

• 3840 x 2160p up to 60 fps

• 3696 x 2772 up to 60 fps

• 1920 x 1080 up to 120 fps

• ProRes 422 Proxy 4:2:2:
• 4096 x 2160p up to 60 fps

• 3840 x 2160 up to 60 fps

• 3696 x 2772 up to 60 fps

• 1920 x 1080 up to 120 fps

• H.265 10-Bit:
• 4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)

• 3840 x 2160p up to 24/25/29.97/50/59.94/120 fps (230 Mb/s)

• 2696 x 2772p at 23.98/24/29.97/50/59.94 fps (230 Mb/s)

• 1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)

• H.264 8-Bit:
• 4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)

• 3840 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)

• 3696 x 2772p at 23.98/24/25/29.97/50/59.94 fps (230 Mb/s)

• 1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)

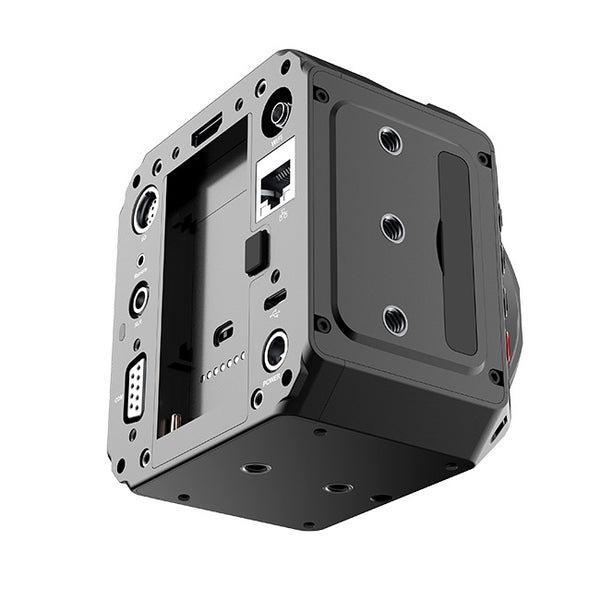

I/O Connectivity

• Video Connectors
• 1 x HDMI (HDMI 2.0) Output

• Audio Connectors
• 1 x 1/8" / 3.5 mm Stereo Mic Level Input
• 1 x 1/8" / 3.5 mm Stereo Output
• 1 x 5-Pin LEMO Mic Level Input

• Other
• 1 x USB Type-C
• 1 x 10-Pin LEMO Sync
• 1 x 9-Pin D-Sub RS-232
• 1 x 2.5 mm LANC Control
• 1 x RJ45 LAN

• Wireless
• 2.4 GHz Wi-Fi

Power

• Battery Type
• Sony L Series

• Connectors
• 1 x 4-Pin LEMO (12 VDC at5 A) Input

Temperatures

• Operating
• 32 to 104°F / 0 to 40°C

• Storage
• -4 to 140°F / -20 to 60°C

Physical

• Mounts
• 1/4"-20 Tripod mount
• 8x 1/4"-20 Accessory mounts

• Construction
• Aluminum

• Dimensions
• 3.59 x 3.91 x 3.51" / 91.2 x 99.2 x 89.1 mm (Without Protrusions)

• Weight
• 1.7 lb / 757 g

Package Weight

• 5 lbs

INCLUDED:

• Z CAM™ E2 Camera Unit
• LEMO Power Cable with D-TAP Plug
• D-TAP Connector
• AC/DC Power Adapter
• Power Cables (US / EU / UK)
• Quick User Guide
• Warranty Card
