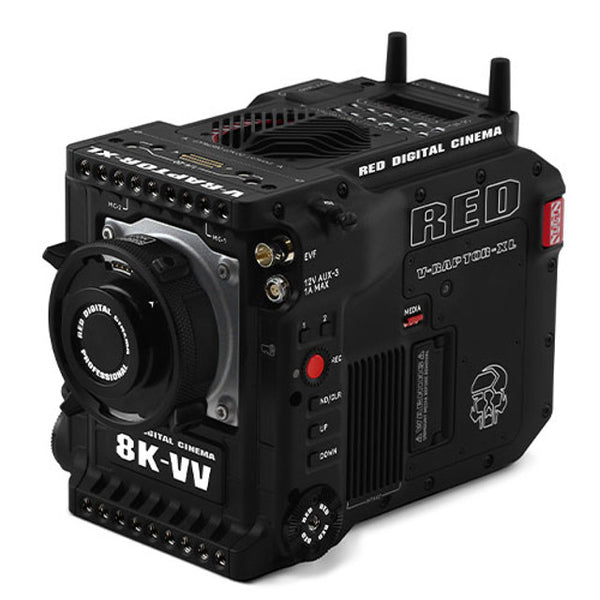

RED - V-RAPTOR™ XL 8K VV

Previous Product | Next Product





DESCRIPTION:



DUE TO HIGH DEMAND AS WELL AS IMPLEMENTATION OF INCREASED COVID-19 SAFETY MEASURES, SHIPPING ESTIMATES MAY FLUCTUATE BEYOND THE INDICATED WINDOW



PREORDER V-RAPTOR XL 8K VV

NOW YOU CAN GET RED'S FLAGSHIP V‑RAPTOR 8K VV SENSOR IN AN ALL‑IN‑ONE SYSTEM SUITED FOR STUDIO CONFIGURATIONS AND HIGH‑END PRODUCTIONS.







    FEATURES:



    • Groundbreaking multi-format 8K sensor
    • Unified body
    • Integrated I/O array
    • Interchangeable Lens Mount
    • Electronic ND System
    • 12V and 24V Outputs
    • Wireless Timecode & Genlock
    • V-Lock & Gold Mount





        SPECIFICATIONS:



        Sensor Types:

        • V-RAPTOR™ 8K VV 35.4 Megapixel CMOS



        Effective Pixels:

        • 8192 x 4320



        Sensor Size:

        • 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)



        Dynamic Range:

        • 17+ stops



        Mount Type:

        • PL (Interchangeable)



        Max Frame Rates:



        • 8K: Up to 119.88 fps
        • 8K (Windowed): Up to 150 fps
        • 7K: Up to 140 fps
        • 7K (Windowed): Up to 175 fps
        • 6K: Up to 160 fps
        • 6K (Windowed): Up to 200 fps
        • 5K: Up to 192 fps
        • 5K (Windowed): Up to 240 fps
        • DCI 4K: Up to 240 fps
        • DCI 4K (Windowed): Up to 300 fps
        • 3K: Up to 320 fps
        • 3K (Windowed): Up to 400 fps
        • DCI 2K: Up to 480 fps
        • DCI 2K (Windowed): Up to 600 fps



          Max Data Rates:

          • Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]



          Playback Frame Rates (Project Timebase):

          • 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions



          Best Available REDCODE Settings:

          • REDCODE HQ
            8192 x 4320 up to 59.94p
            6144 x 3240 up to 96p
            4096 x 2160 up to 240p
            2048 x 1080 up to 480p
          • REDCODE MQ
            8192 x 4320 up to 59.94p
            6144 x 3240 up to 160p
            4096 x 2160 up to 240p
            2048 x 1080 up to 480p
          • REDCODE LQ
            8192 x 4320 up to 119.88p
            6144 x 3240 up to 160p
            4096 x 2160 up to 240p
            2048 x 1080 up to 480p



            REDCODE RAW Acquisition Formats:

            • 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
            • 8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic
            • 7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
            • 7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic
            • 6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
            • 6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic
            • 5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
            • 4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
            • 3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
            • 2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw





              Physical:

              • Construction: Aluminum Alloy
              • Weight: 7.99 lb / 3.62 kg
              • Battery Type: V-Lock or Gold Mount
              • DC Power Input: 11-17V via 6-pin DC-IN
              • Operating Temp: 0°C to 40°C (32°F to 104°F)
              • Storage Temp: -20°C to 50°C (–4°F to 122°F)
              • Relative Humidity: 0% to 85% non-condensing



              Color Management:

              • Image Processing Pipeline 2 (IPP2)



              Audio:

              • LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
              • Built-In Mono Microphone
              • 1/8" / 3.5 mm TRS Stereo Headphone Output







              INCLUDED:



              Based on Selection.

              • BRAIN alone
              • PRODUCTION PACK
                  $39,995.00
