RED - KOMODO 6K

FEATURES:

SPECIFICATIONS:

Sensor Types:

• KOMODO™ 19.9 MP Super 35mm Global Shutter CMOS

Effective Pixels:

• 6144 (h) x 3240 (v)

Sensor Size:

• 27.03 mm x 14.26 mm (Diagonal 30.56 mm)

Dynamic Range:

• 16+ stops

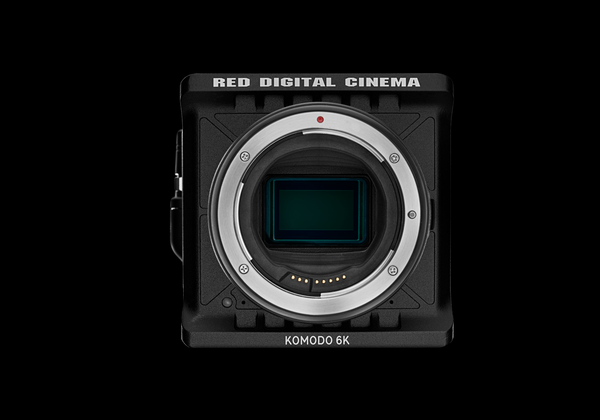

Mount Type:

• RF mount
• Accepts Canon RF mount-based lens adaptors for diverse lens choices
• Supports Canon EF with full electronic communication via compatible Canon RF mount adapters, and supports mechanically operated RF lenses
• (electronic control of Canon RF lenses not supported at this time)

Max Frame Rates:

• 40 fps at 6K 17:9 (6144 x 3240)
• 50 fps at 6K 2.4:1 (6144 x 2592)
• 48 fps at 5K 17:9 (5120 x 2700)
• 60 fps at 4K 17:9 (4096 x 2160)
• 120 fps at 2K 17:9 (2048 x 1080)

Max Data Rates:

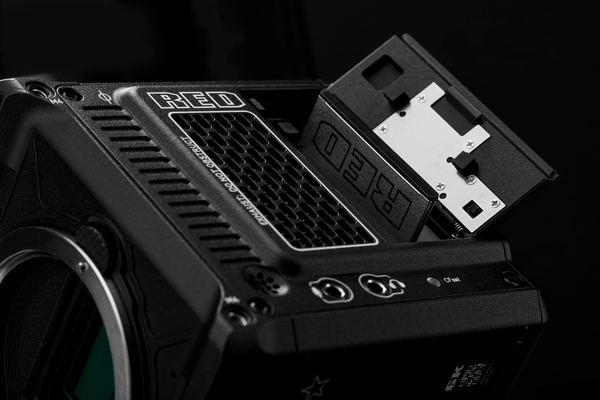

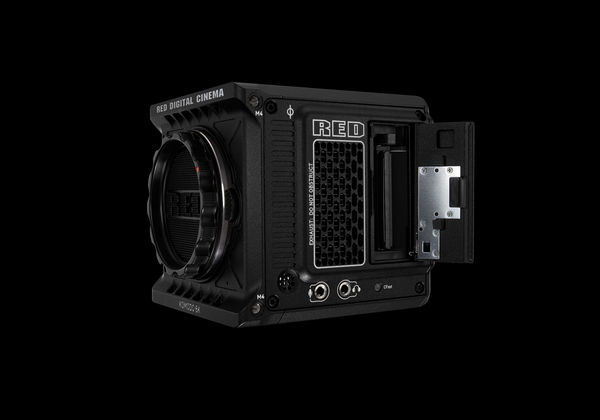

• Up to 280 MB/s using RED Pro CFast and qualified CFast 2.0 memory cards

Playback Frame Rates (Project Timebase):

• 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

REDCODE Settings Range from 2:1 up to 22:1:

• REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
• REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
• REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps

REDCODE RAW Acquisition Formats:

• 6K 17:9 (6144 x 3240) 2:4:1 and 16:9
• 5K 17:9 (5120 x 2700)
• 4K 17:9 (4096 x 2160)
• 2K 17:9 (2048 x 1080)

Apple ProRez:

• 4K (4096 x 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
• 2K (2048 x 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps

AVID Codecs:

• DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps

• DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps

• DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps

• DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps

• DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps

Physical:

• Construction: Aluminum Alloy
• Weight: 2.10 lbs (without body cap and CFast card)

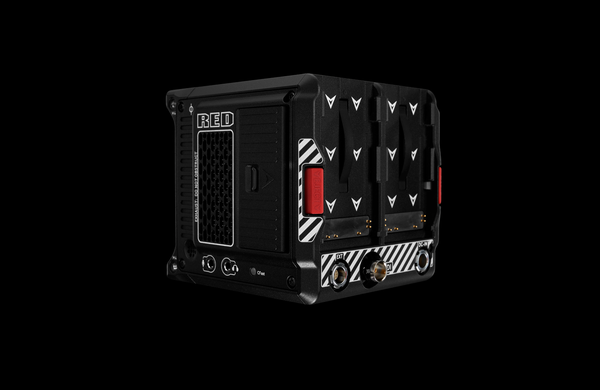

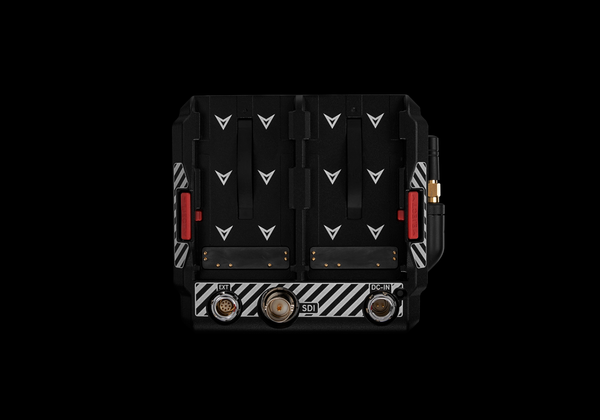

• Battery Type: Two slots for Canon BP-9XX series batteries
• DC Power Input: +7 to +17 V DC via the integrated 2-pin DC-IN port

• Operating Temp: 0°C to 40°C (32°F to 104°F)
• Storage Temp: -20°C to 50°C (–4°F to 122°F)
• Relative Humidity: 0% to 85% non-condensing

Color Management:

• Image Processing Pipeline (IPP2)
• Supports 33x33x33 3D LUTs
• Supports import of CDLs

Audio:

• Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
• Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz

Remote Control:

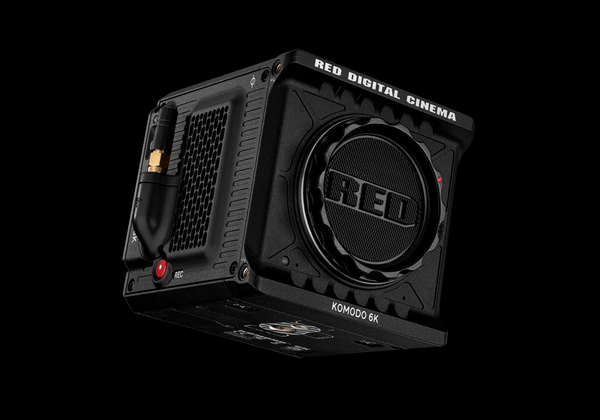

• WiFi for camera control via interchangeable antenna with SMA connection

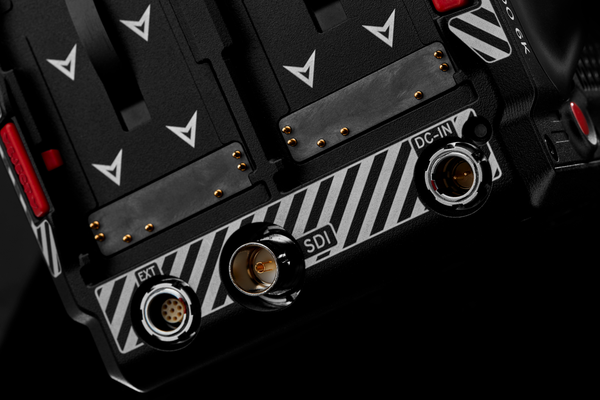

• Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT port
• Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed

Monitor Outputs:

• Integrated 12G-SDI with 6G-SDI and 3G-SDI modes
• 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
• 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
• 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
• 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
• SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

Monitor Options:

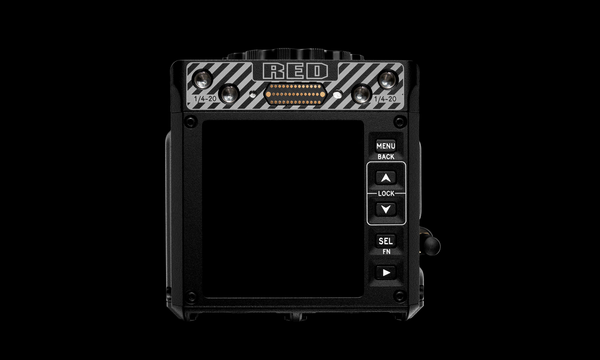

• Integrated 2.9” 1440x1440 touchscreen LCD with preview and camera control
• Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing

RED Control:

• Access full camera controls and live preview from iOS or Android devices.Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately).

INCLUDED:

BRAIN alone.

• (1) KOMODO 6K BODY​
• (1) AC Power Adaptor 45W​
• (1) Mini World Travel Adaptor Kit​
• (1) RED Logo Sticker​
• (1) KOMODO Information Card (incl. registration and support info)​
• (1) Box with plastic / foam (standard minimalist markings)​
• (1) RF to EF Mechanical Adapter​
• (1) 1 Year Standard Warranty

STARTER PACK.

• (1) KOMODO™ 6K Camera System

• (1) Canon® Drop-In Filter Mount Adapter EF-EOS R with Variable
• (1) ND Filter

• (1) KOMODO™ Wing Grip

• (1) RED® PRO CFast 512GB

• (1) RED® CFast 2.0 Card Reader

• (1) RED® EXT-to-Timecode Cable 3'

• (1) RED® PTap-to-Power Cable 6'

• (1) 1-Year Standard Warranty

PRODUCTION PACK.

• (1) KOMODO™ 6K Camera System

• (1) Outrigger Handle​

• (1) KOMODO™ Wing Grip

• (1) KOMODO™ Expander Module

• (1) RED® PRO CFast 512GB

• (1) RED® CFast 2.0 Card Reader

• (1) RED® PTap-to-Power Cable

• (1) Canon Drop-In Clear Filter

• (1) Canon RF to EF Adapter w/ Variable ND Filter

• (1) 1-Year Standard Warranty
