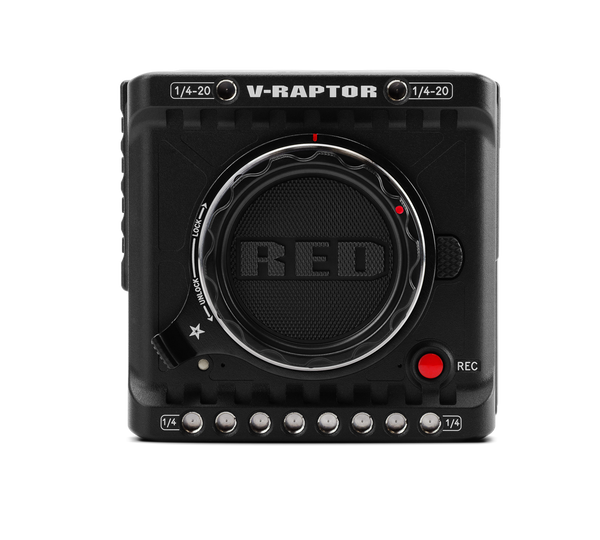

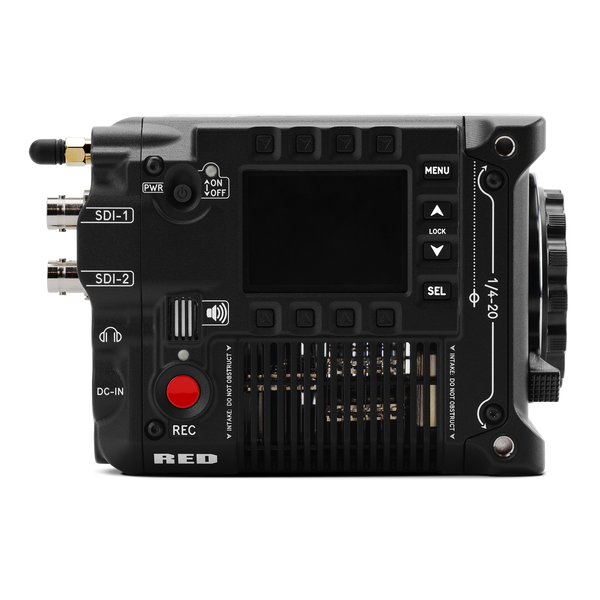

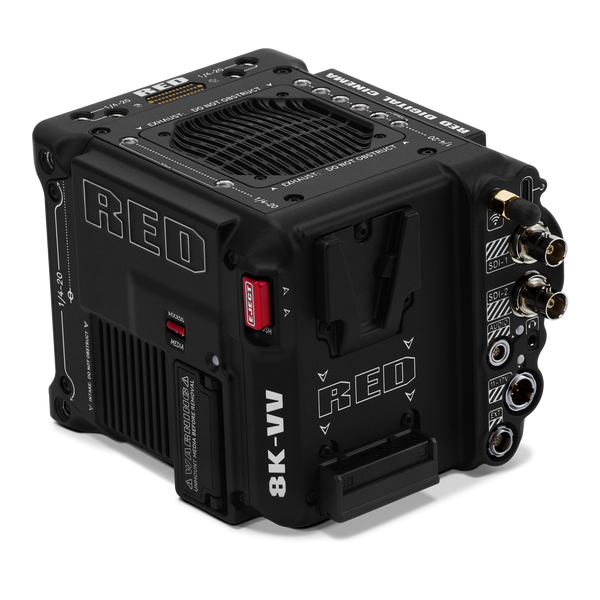

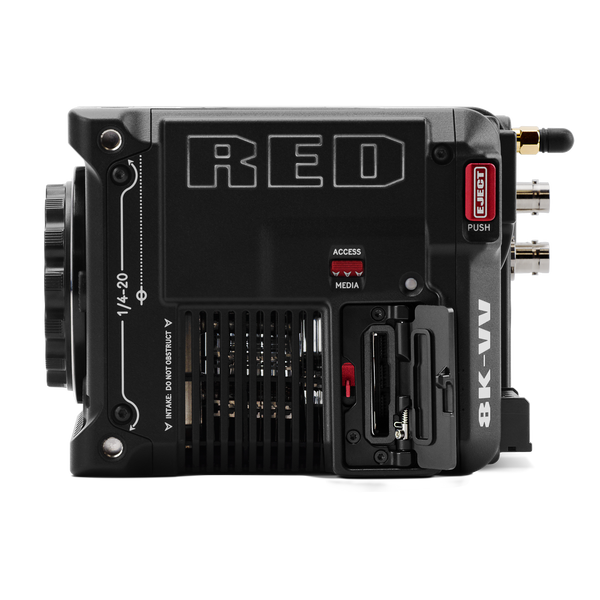

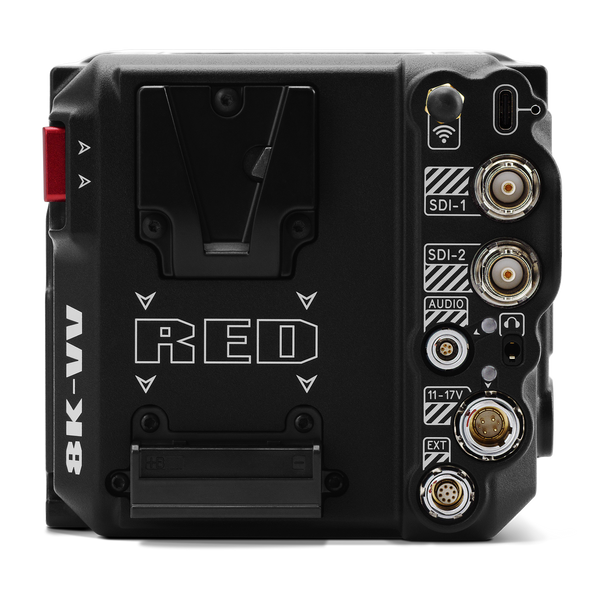

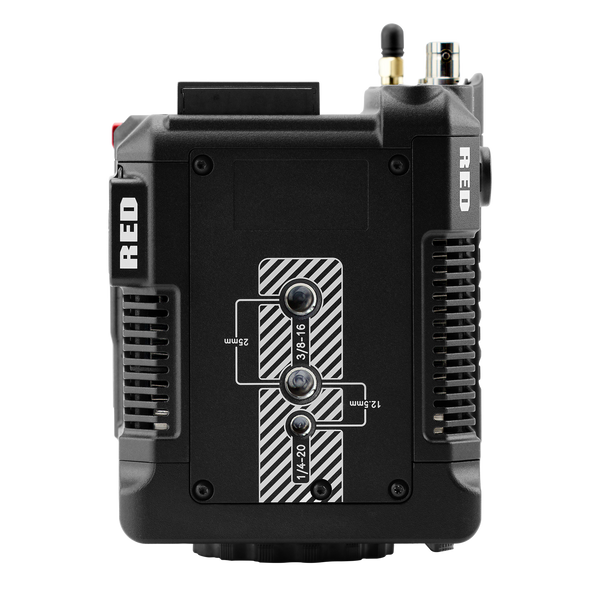

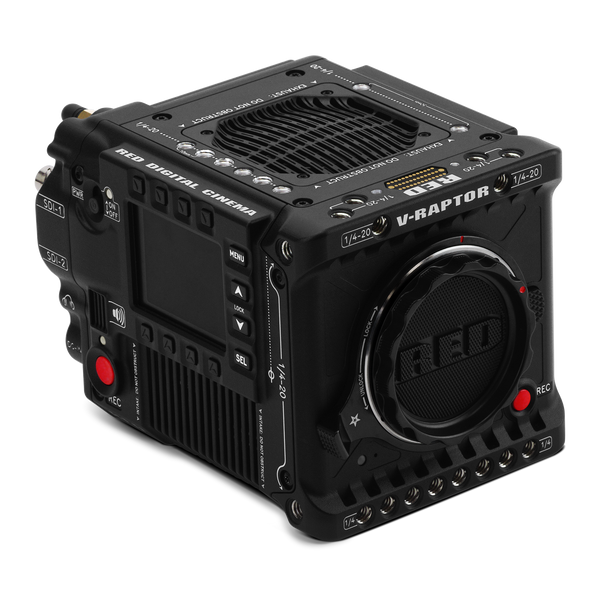

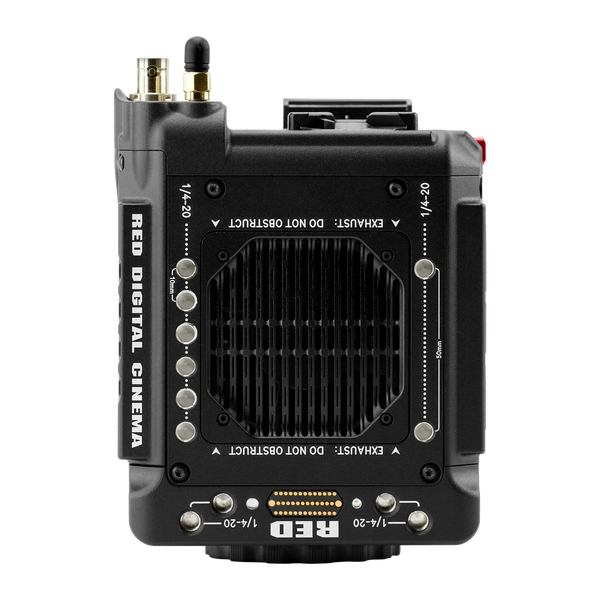

RED - V-RAPTOR™ 8K VV + 6K S35 (Dual Format)

Previous Product | Next Product





DESCRIPTION:



DUE TO HIGH DEMAND AS WELL AS IMPLEMENTATION OF INCREASED COVID-19 SAFETY MEASURES, SHIPPING ESTIMATES MAY FLUCTUATE BEYOND THE INDICATED WINDOW



V-RAPTOR 8K VV is the most powerful and versatile RED cinema camera ever. As the brand’s new flagship
system and sensor, as well as the first entrant into the new DSMC3 generation of cameras, V-RAPTOR
stands alone at the forefront of the of digital image capture technology.







    FEATURES:



    • Groundbreaking multi-format 8K sensor
    • Scan times 2x faster than any previous RED camera
    • 2 4K 12G-SDI outputs
    • XLR audio and phantom power via adapter
    • 1080p livestream
    • 17 stops of dynamic range





        SPECIFICATIONS:



        Sensor Types:

        • V-RAPTOR™ 8K VV 35.4 Megapixel CMOS



        Effective Pixels:

        • 8192 x 4320



        Sensor Size:

        • 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)



        Dynamic Range:

        • 17+ stops



        Mount Type:

        • Integrated RF mount with RF lens support
          Supports Canon EF lenses via compatible Canon RF to EF mount adapters
          Accepts other Canon RF mount-based lens adaptors for diverse lens choices



        Max Frame Rates:



        • 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
        • 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
        • 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
        • 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
        • 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
        • 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
        • 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)



          Max Data Rates:

          • Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]



          Playback Frame Rates (Project Timebase):

          • 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions



          Best Available REDCODE Settings:

          • REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
          • REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
          • REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
          • REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
          • REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
          • REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps



            REDCODE RAW Acquisition Formats:

            • 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
            • 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
            • 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
            • 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
            • 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
            • 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
            • 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1



              Apple ProRez:

              • 4K (4096 x 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
              • 2K (2048 x 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps



                AVID Codecs:

                • DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
                • DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
                • DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
                • DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
                • DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps



                Physical:

                • Construction: Aluminum Alloy
                • Weight: 4.3 lbs (without body cap and CFexpress card)
                • Battery Type: Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
                • DC Power Input: 11-17V via 6-pin DC-IN
                • Operating Temp: 0°C to 40°C (32°F to 104°F)
                • Storage Temp: -20°C to 50°C (–4°F to 122°F)
                • Relative Humidity: 0% to 85% non-condensing



                Color Management:

                • Image Processing Pipeline 2 (IPP2)
                • Supports 33×33×33 3D LUTs
                • Supports import of CDLs



                Audio:

                • Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
                • Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz



                Remote Control:

                • Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
                • Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
                • Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload



                Monitor Outputs:

                • Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
                • 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
                • 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
                • 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
                • 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
                • SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio



                Monitor Options:

                • DSMC3 RED® Touch 7.0” LCD
                • Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
                • Integrated 2.4" LCD for camera control (no preview video)



                RED Control:

                • Access full camera controls and live preview from iOS or Android devices
                  Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C







                INCLUDED:



                BRAIN alone.

                • V-RAPTOR ST 8K VV Body​
                • DSMC AC Power Adaptor Pack (150W)
                • RED Logo Sticker​
                • V-RAPTOR Information Card (incl. registration and support info)​
                • 2 Year Standard Warranty



                STARTER PACK.

                • 1x V-RAPTOR ST 8K VV Camera System
                • 1x DSMC3 RED Touch 7.0” LCD​
                • 1x RED PRO CFexpress 660GB
                • 1x RED CFexpress Card Reader​
                • 2x REDVOLT MICRO-V
                • 1x RED Compact Dual V-Lock Charger
                • 2x V-RAPTOR Wing Grip
                • 1x RED EXT-to-Timecode Cable 3'
                • V-RAPTOR Information Card (incl. registration and support info)Registration Card​
                • 2 Year Standard Warranty (camera only)
                  $24,995.00
